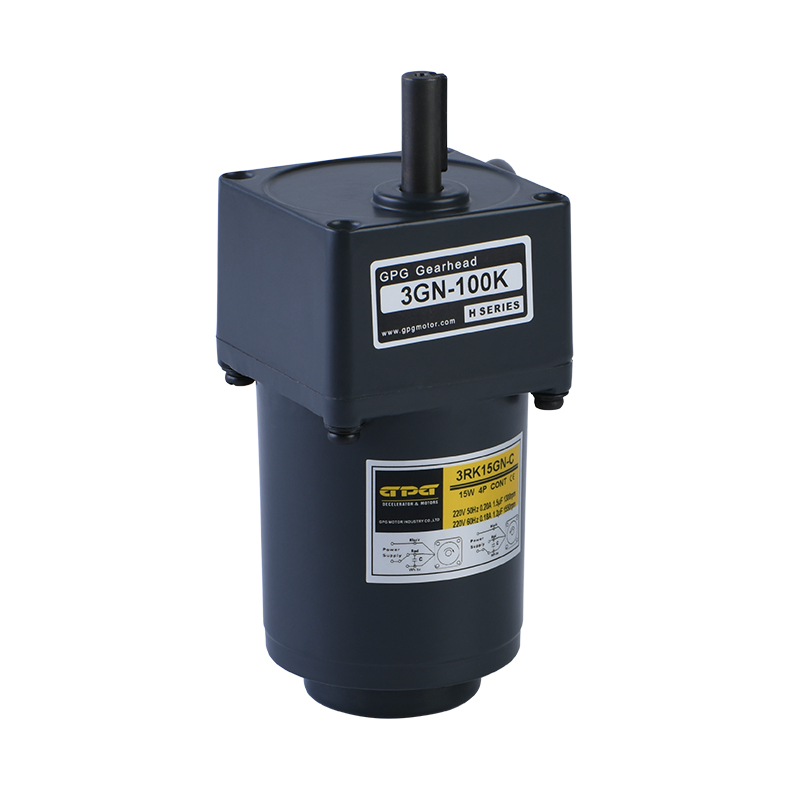

4W-250W Protection Type Gpg Vtv Yn60 Yn70 Yn80 Yn90 Yn100 CE, ISO9001, UL Single Phase Micro AC Gear Motor for Automation Industry

Basic Specifications

Model NO.

5RK60GN-CFM 5GN100RT

Number of Stator

Three-Phase

Function

Driving

Casing Protection

Protection Type

Number of Poles

4

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC, CE, UL

Brand

Gpg

Geared Motor

AC Motor

Rk Motor

Reversible Motor

Power

4W-250W

Production Capacity

50000 pieces

Product Overview

What is a gear motor?
A gear motor is an electric motor combined with a gear reducer box. Electric gear motors are used in various applications that require high output torque and low output rotation speed.

This gear motor is an ideal drive for all kinds of industrial automation products for both industrial and commercial applications. We provide steady quality products featuring quiet and efficient performance gear motor engineering solutions.

Main Product Range

Our primary range includes induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV medium gear motors, Planetary gear motors, Worm gear motors, and Right angle solid and hollow shaft gear motors. These are widely used in manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, entertainment, and more.

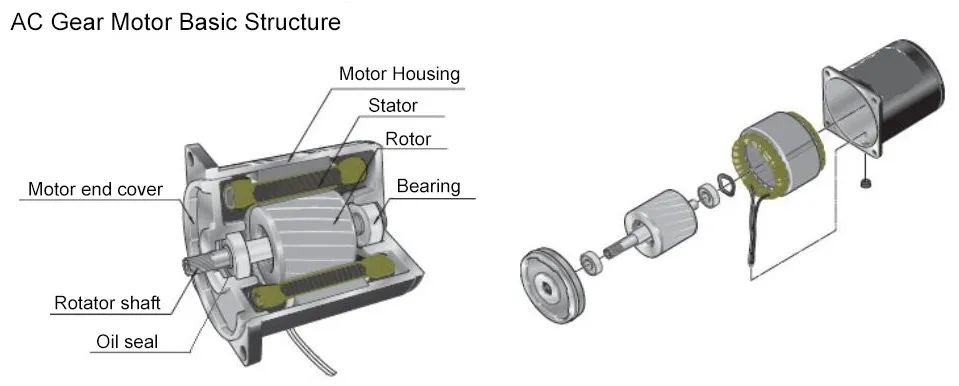

Key Technical Features

➤ Housing: End cover and housing made of die-casting Aluminum for high precision, strength, and light weight.
➤ Stator: Consists of silicon steel sheet core, copper coil, and high-quality insulating material.
➤ Rotor: Features laminated silicon steel sheets and aluminum cast conductors.
➤ Shaft: High-performance medium carbon alloy steel processed with special techniques (available in round and gear shafts).
➤ Components: Premium bearings and oil seals ensure superior running performance and sealing effects.

Model Configuration Guide

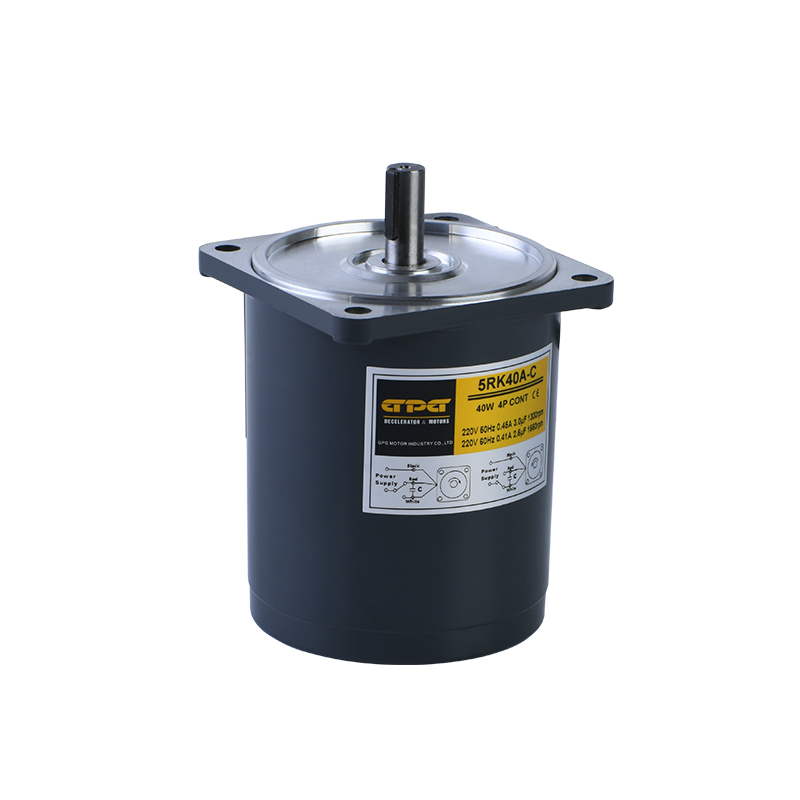

Motor Model Instruction: 5RK60GN-CFM

Frame Size	Type	Series	Power	Speed Control	Shaft Type	Voltage	Accessory
2: 60mm 3: 70mm 4: 80mm 5: 90mm 6: 104mm	I: Induction R: Reversible T: Torque	K Series	6W to 200W	Motor series option	A: Round GN: Bevel Gear GU: Bevel Gear	A: 110V C: 220V S: 3PH 220V	T/P: Thermal F: Fan M: Brake

Gear Head Model Instruction: 5GN100RT

Frame Size	Shaft Type	Reduction Ratio	Bearing Type	Additional Info
5 (90mm)	GN / GU / GM / GS	1:100 (Example)	K: Standard RT: Right Angle RC: Hollow Shaft	Shaft diameter, length, etc.

Technical Specifications

Specification of 60W 90mm Fixed Speed AC Gear Motor

Type	Power (W)	Freq (Hz)	Voltage (V)	Current (A)	Start Torque (g.cm)	Rated Speed (rpm)
Reversible Motor	60	50	220	0.55	4500	1300
Reversible Motor	60	60	220	0.50	3770	1550

Dimensions & Wiring

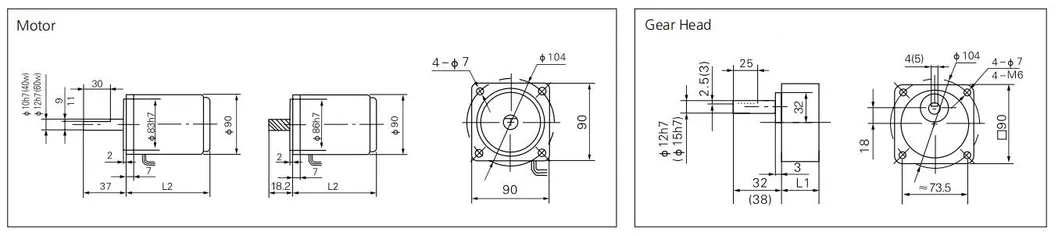

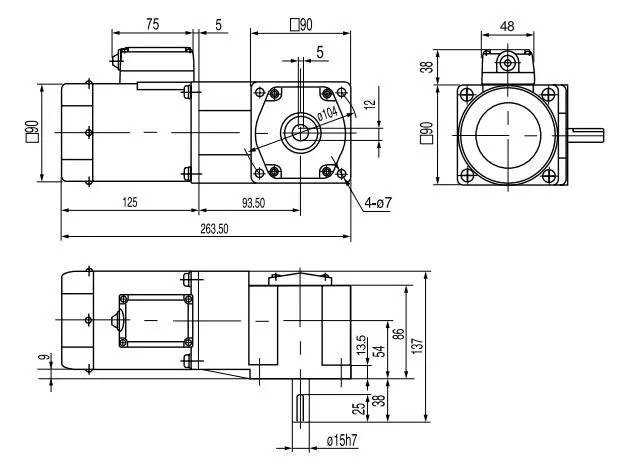

External Dimensions

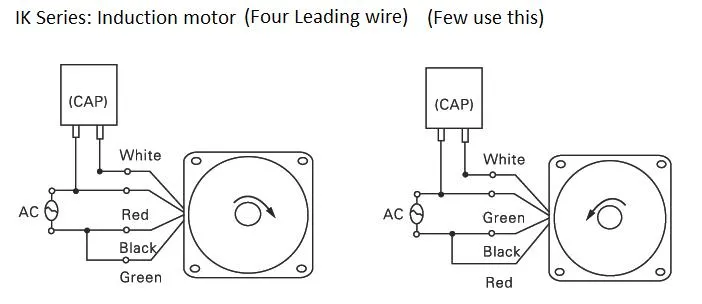

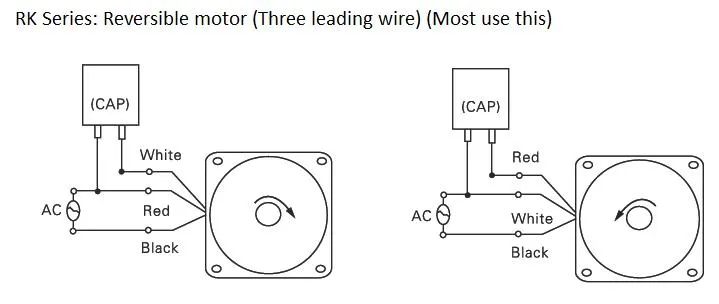

Connection Diagrams

Frequently Asked Questions

1. What are the typical applications for these gear motors? They are widely used in industrial automation, transportation, food processing, medical equipment, printing, and packaging machinery where high torque and low speed are required.

2. What materials are used in the motor's construction? The housing is made of die-casting aluminum for weight reduction and precision. The internal stator uses silicon steel sheets and copper coils for high efficiency.

3. Does the motor include thermal protection? Yes, models can be equipped with "T/P" (Thermally Protected) features, along with fans (F) or electromagnetic brakes (M) depending on the configuration.

4. What is the power range available for these micro AC motors? The standard power range spans from 4W to 250W, making them suitable for a variety of micro-automation tasks.

5. What certifications do these products carry? Our gear motors are certified by ISO9001, CCC, CE, and UL, ensuring compliance with international quality and safety standards.

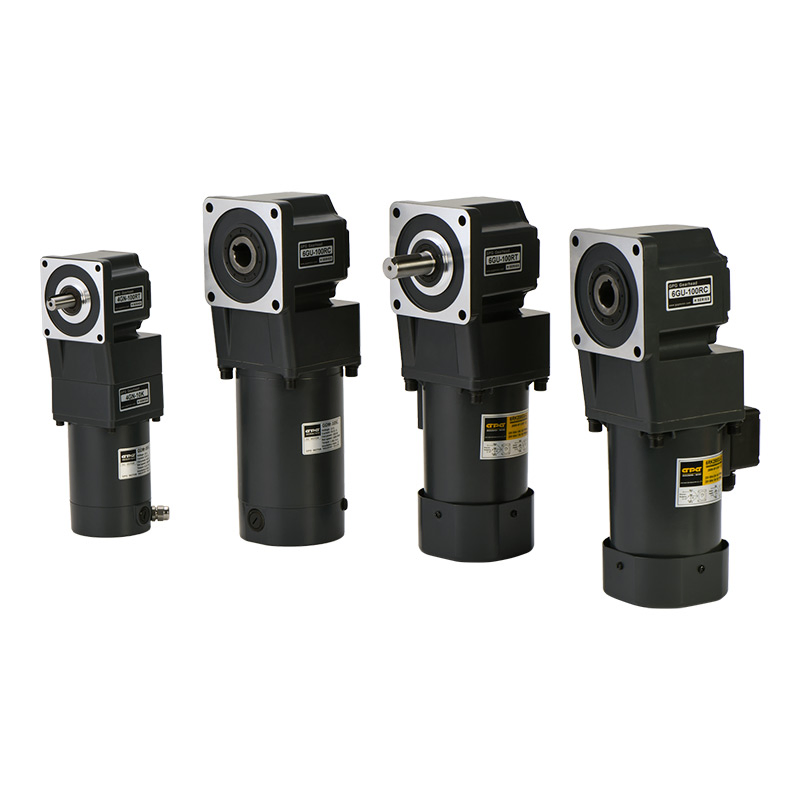

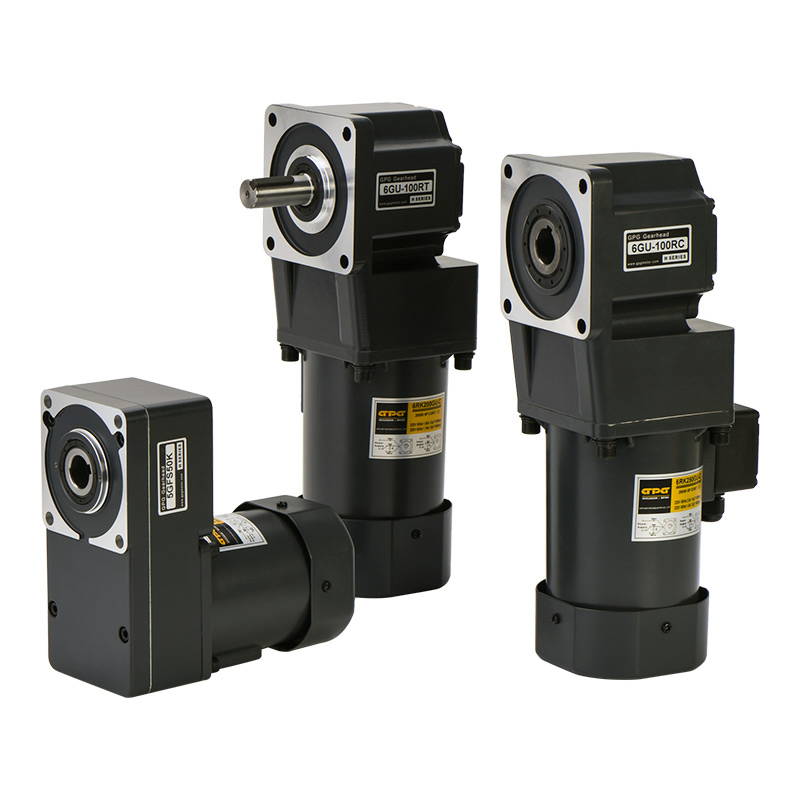

6. Can I get a right-angle output shaft? Yes, the model guide includes options for "RT" (Right Angle with Axial) and "RC" (Right Angle with Hollow Shaft) configurations.
