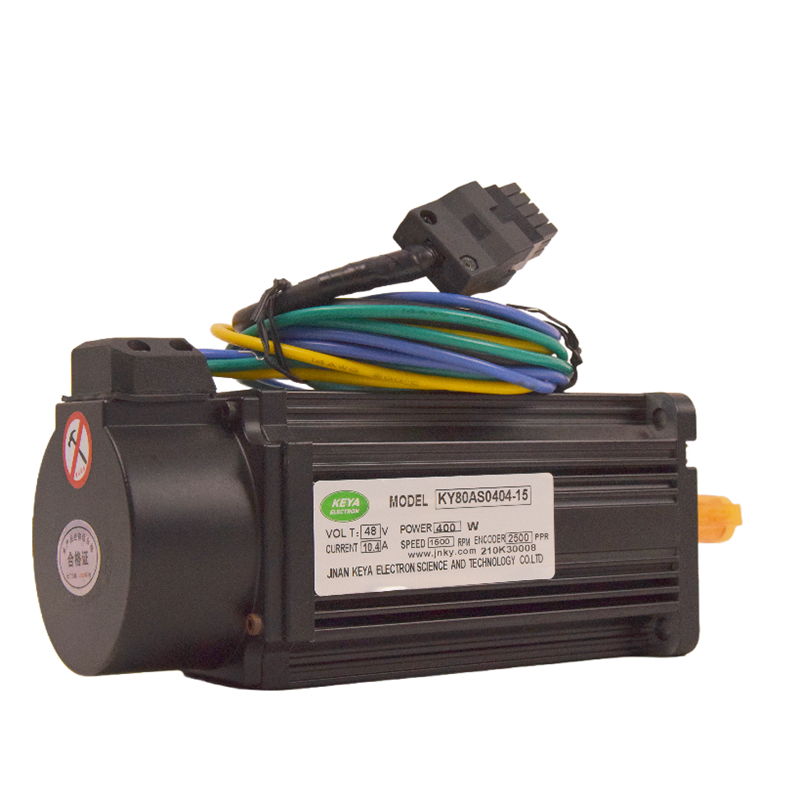

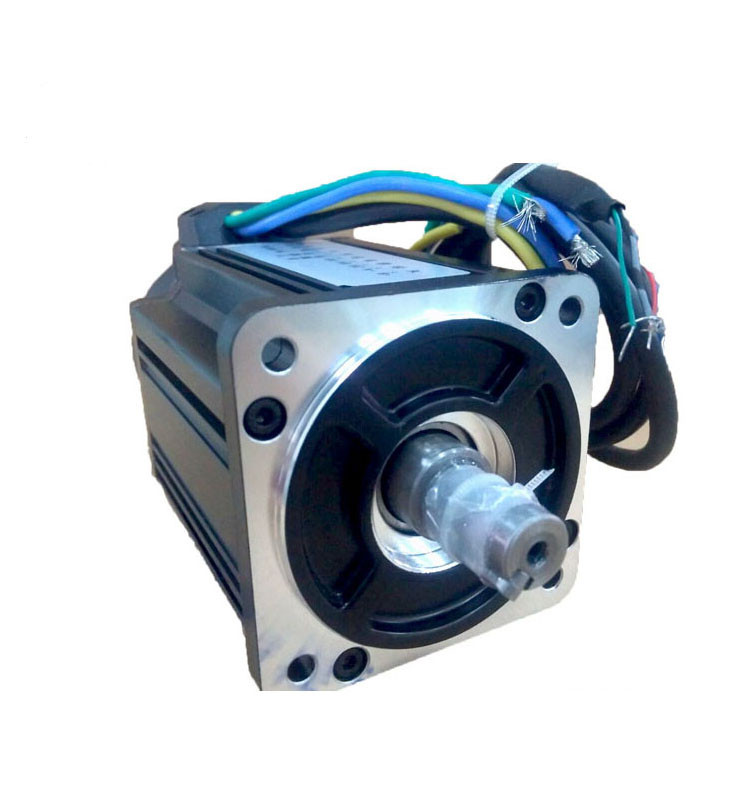

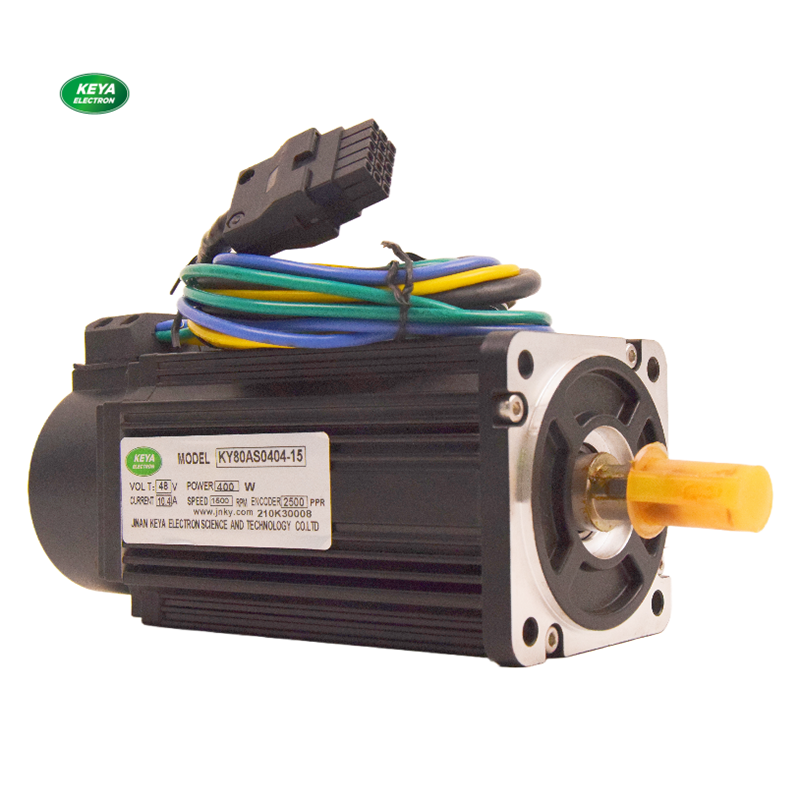

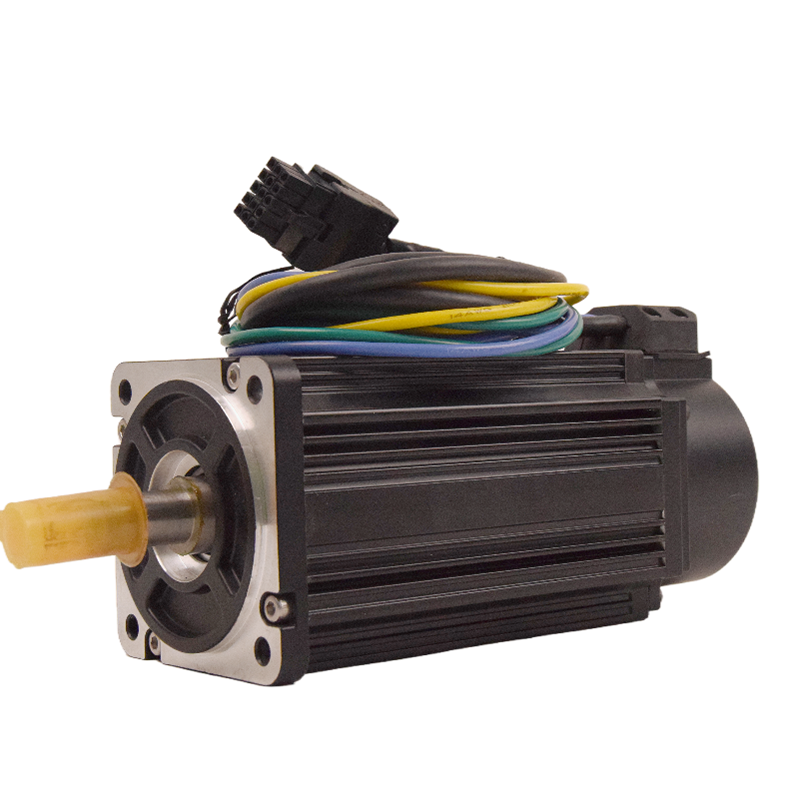

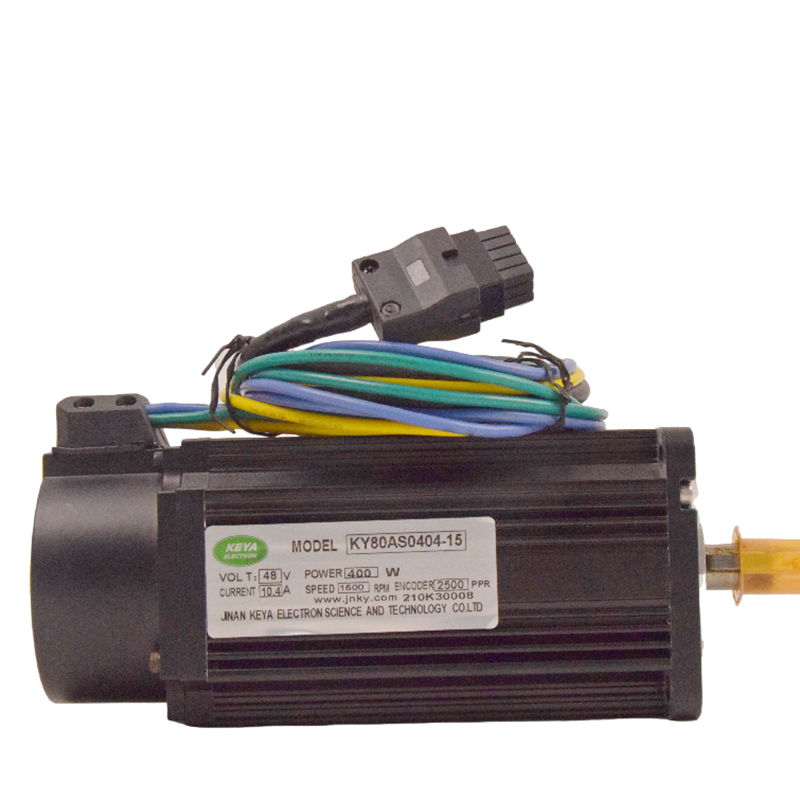

Low-voltage 24V/48V 400W DC Brushless Servo Motor with Encoder
This series servo motor is designed for high-performance motion control, offering a perfect balance of efficiency and power.
Product Key Advantages
⚡Lower temperature rise, conducive to the overall heat dissipation design.
⚡Higher torque overload capacity; ideal for various mobile robots.
⚡High efficiency, greatly extending battery life for mobile applications.
⚡Low speed and high torque, reducing wear on reduction mechanisms.
⚡Small vibration and lower noise for enhanced user comfort.
⚡Insulation class H, ensuring excellent overload capacity and long life.
Material and Build Quality
The magnet is made of N38SH, a high-grade material. The product uses SKF bearings, well-known for their durability. The stator utilizes H-level enameled wire, resistant to high temperatures up to 180 degrees Celsius. The motor housing is constructed from aluminum alloy 6061 for precision and heat dissipation. Equipped with a 2500 incremental encoder, with an optional absolute encoder.

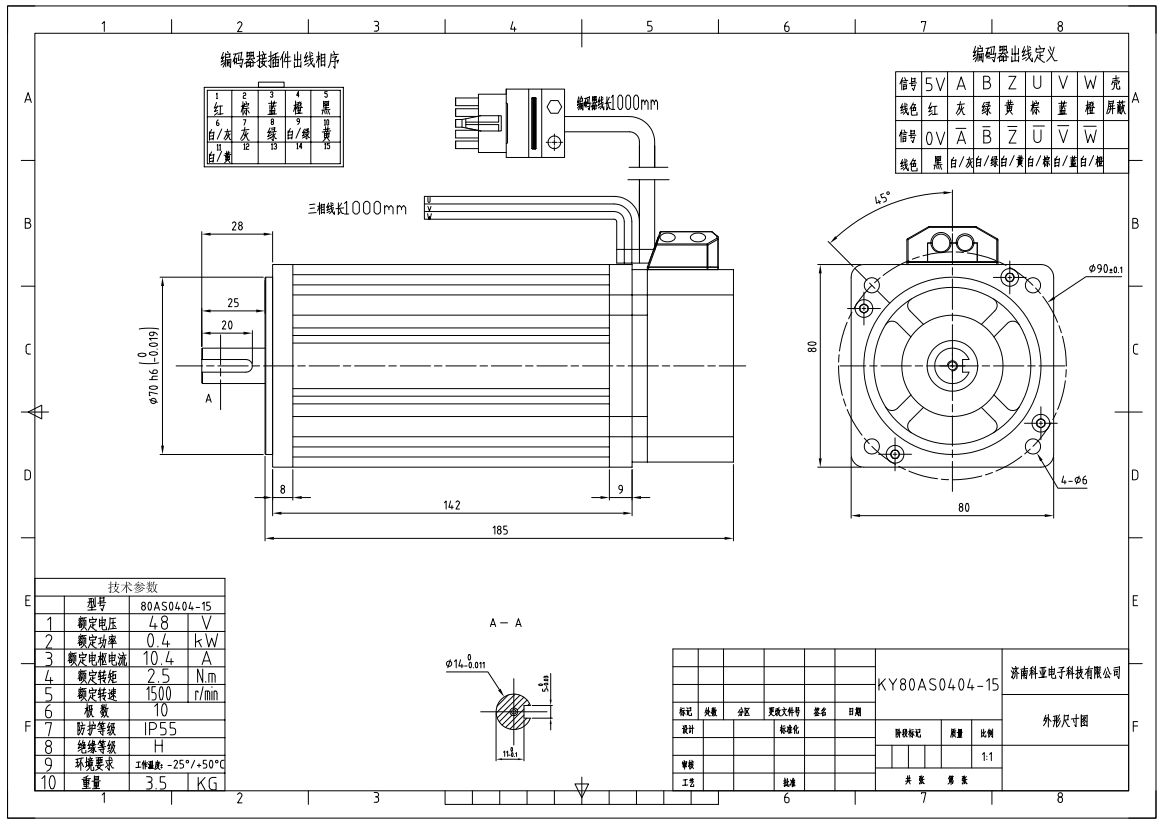

Technical Specification (KY80AS0404-15/15B)
| Parameter |
Value |
| Rated Voltage | DC 48V |
| Rated Power | 400W |
| Rated Speed | 1500 RPM |
| Rated Current | 10.4A |
| Rated Torque | 2.5 N.m |
| Instantaneous Max Torque | 7.5 N.m |
| Instantaneous Max Current | 31A |
| Max Speed | 1950 RPM |
| Flange Size | 80 mm |
| Number of Pole Pairs | 5 Pairs |
Brake Options (Optional):
• Rated Voltage: 24V | • Power: 13W | • Condition: Brake when power is off.

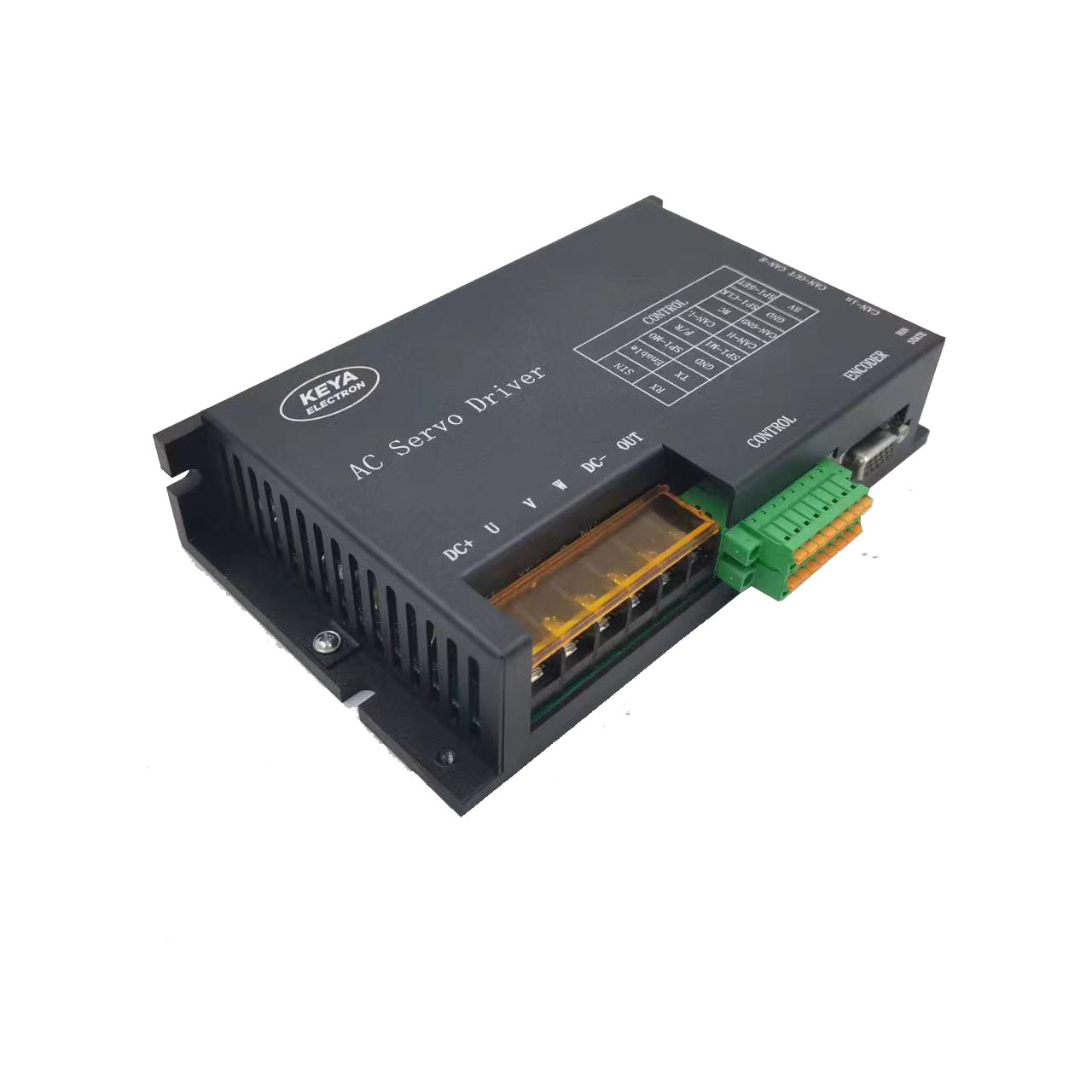

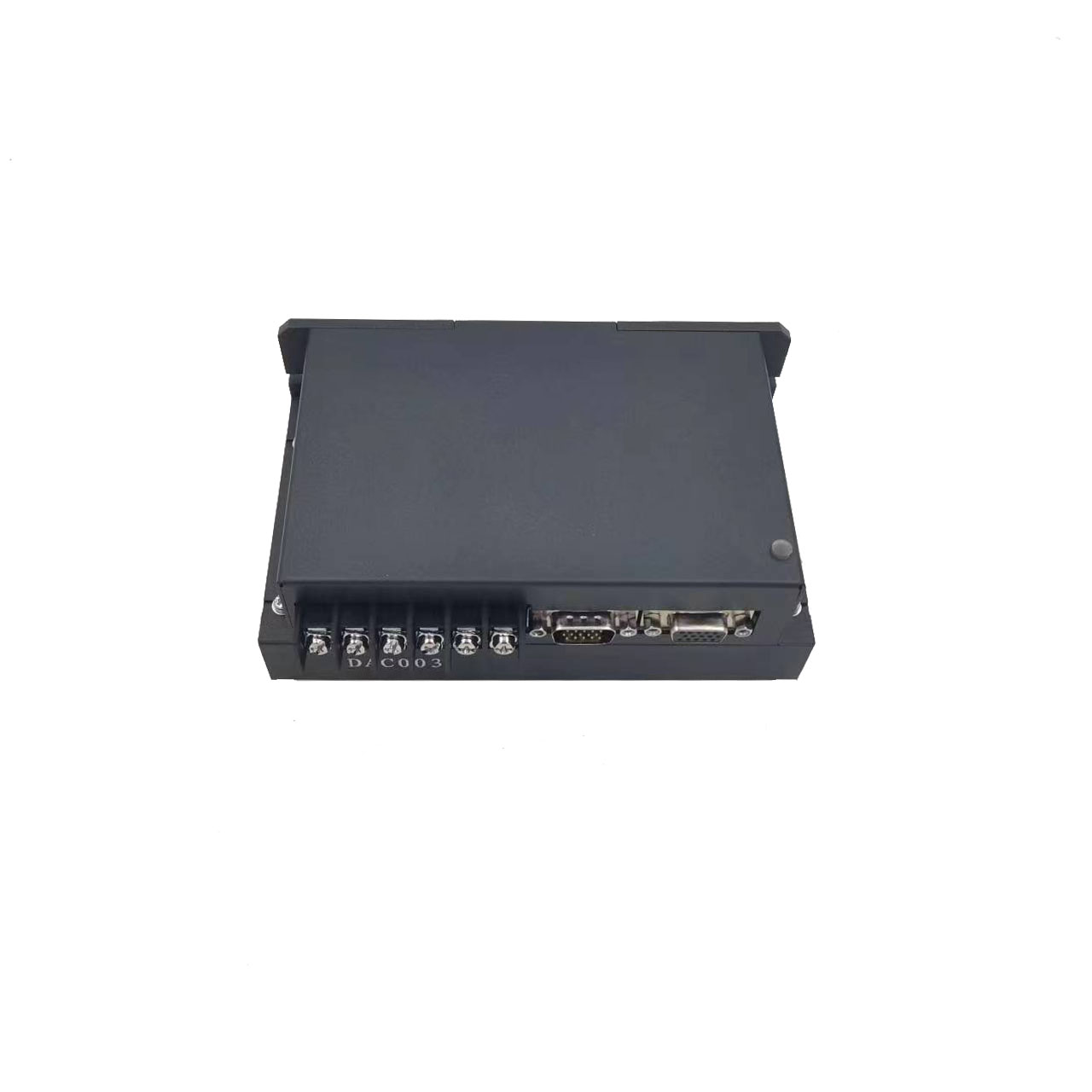

Recommended Driver Controller
Recommended Driver: KYDAS4201A (DC48V, 1500W, 20A)
Wiring Definition
| Motor |
Encoder |
| MA/U | MB/V | MC/W |
5V | A | B | Z | Hall A/U | Hall B/V | Hall C/W |
| Yellow | Green | Blue |
Red | Gray | Green | Yellow | Brown | Blue | Orange |

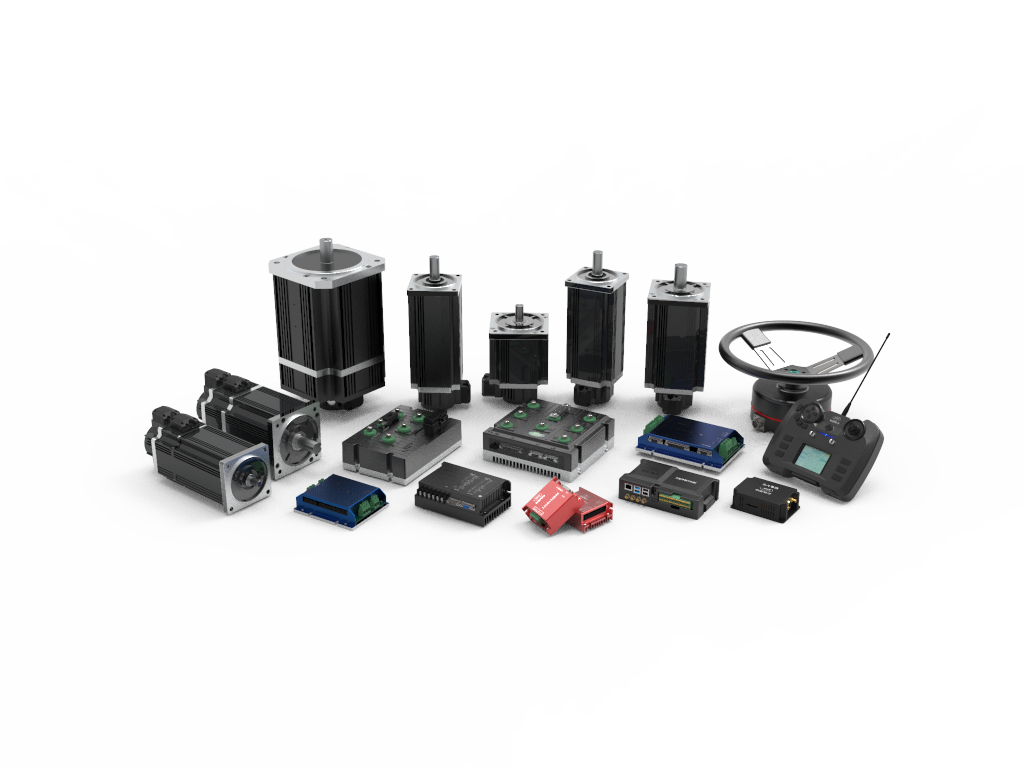

Related Products Range
| Model |
Power |
Volt |
Speed |
Torque |
| KY80AS020-15 | 200W | 24V/48V | 1500rpm | 1.27N.m |
| KY80AS0204-15 | 400W | 24V/48V | 1500rpm | 2.55N.m |
| KY110AS0408-15 | 800W | 24V/48V | 1500rpm | 5.0N.m |
| KY110AS0415-15 | 1500W | 48V | 1500rpm | 9.5N.m |
| KY130AS0430-15 | 3000W | 48V | 1500rpm | 19.1N.m |
Product Applications
Widely used in intelligent robotic systems: AGV (automatic guided vehicle), intelligent vehicles, crawler/caterpillar vehicles, fire fighting robots, rescue robots, medical robots, underwater robots, and service robots.
Packing & Certifications
Exhibitions & Customers

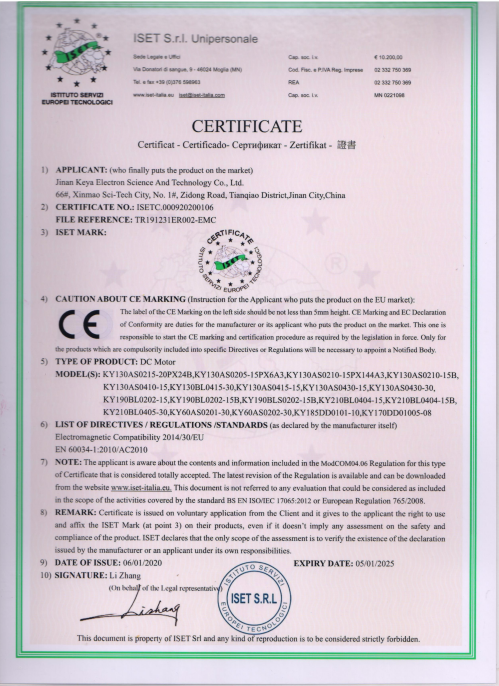

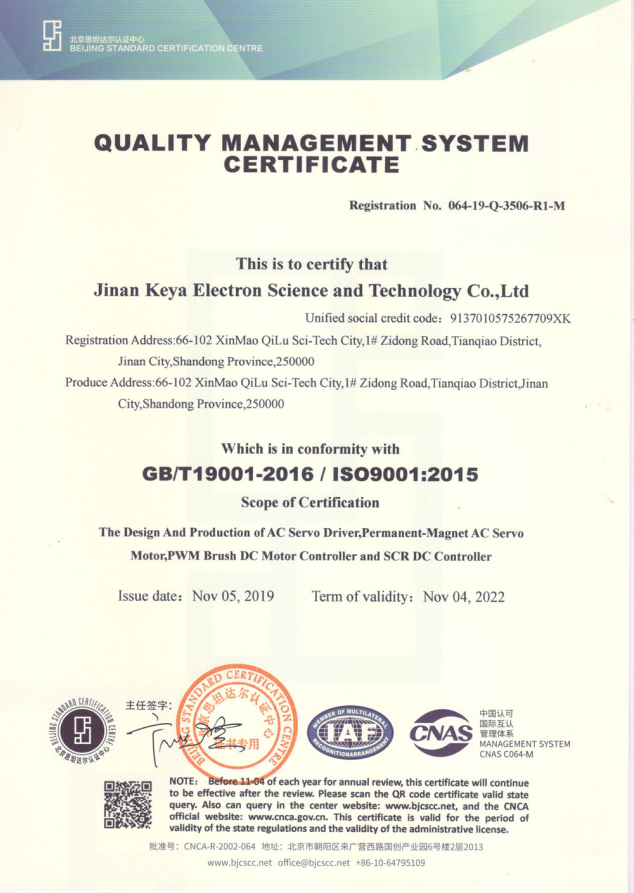

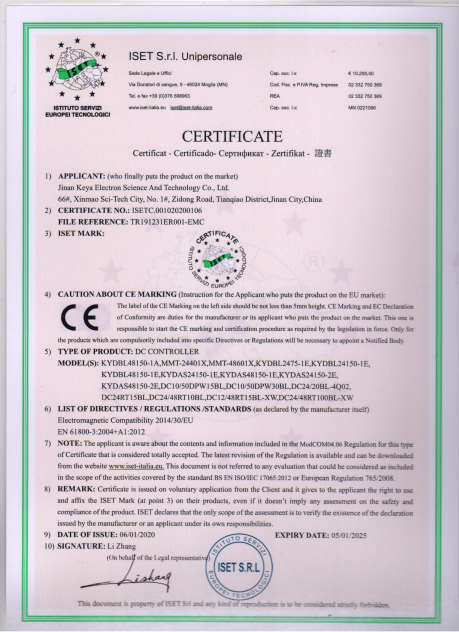

Certificates
