80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
1 / 5
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W
80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W

80mm High Torque Brushless DC Motor with Controller Driver Brake Integrated 12V 24V 36V 48V 230V BLDC Planetary Worm Gear Motor 150W 200W 300W 400W 500W 800W

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed: Adjust Speed
Send Inquiry

Product Description

Basic Info

Model NO.
80BL Series
Function
Driving
Casing Protection
Closed Type
Number of Poles
8
Structure & Principle
Brushless
Certification
ISO9001, Ce RoHS
Transport Package
Standard Export Package
Specification
80mm
Trademark
OEM ODM
Origin
China
HS Code
85013100
Production Capacity
10000 PCS Per Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 20.00cm
Package Gross Weight
2.000kg

Product Description

Customized 80mm Brushless Dc Motors/DC Gear Motor

  • ⚙️
    Fully Customizable Options Tailor voltage, dimension, performance, shaft, mounting, and more to your exact specifications.
  • 🔌
    Integrated Solutions Available Incorporate optional components seamlessly including encoders, gearboxes, brakes, and controllers.
i

Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.

Specifications & Performance Options

Diameter 80mm
Rated voltage 12v 18v 24v 36v 48v up to 380vdc
Rated torque Up to 3Nm (if with gearbox up to 120Nm)
Rated speed 1000rpm 1500rpm 2000rpm 3000rpm 4000rpm or customized
Rated power 150w 200w upto 800w
Protection class Option IP00 40 50 54 56 66 67
EMI EMI suppression available
Thermal Thermal protection available
Gearbox Option with planetary or worm gearbox assembled
Brake Option with electric brake assembled
Encoder Option with Optical or Magnetic encoders assembled
Controller Option with controller integrated for BLDC Motors

Product Gallery & Technical Diagrams

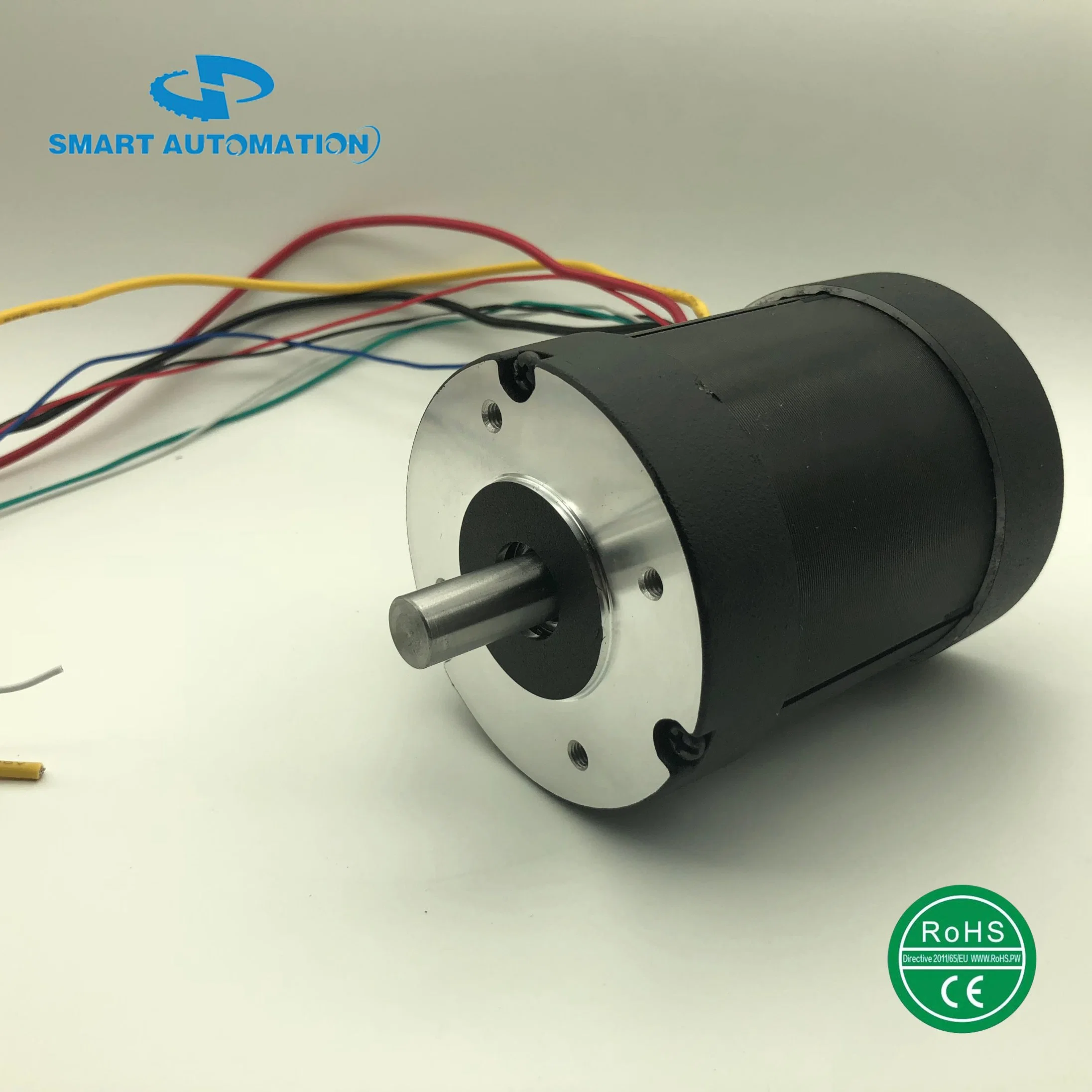

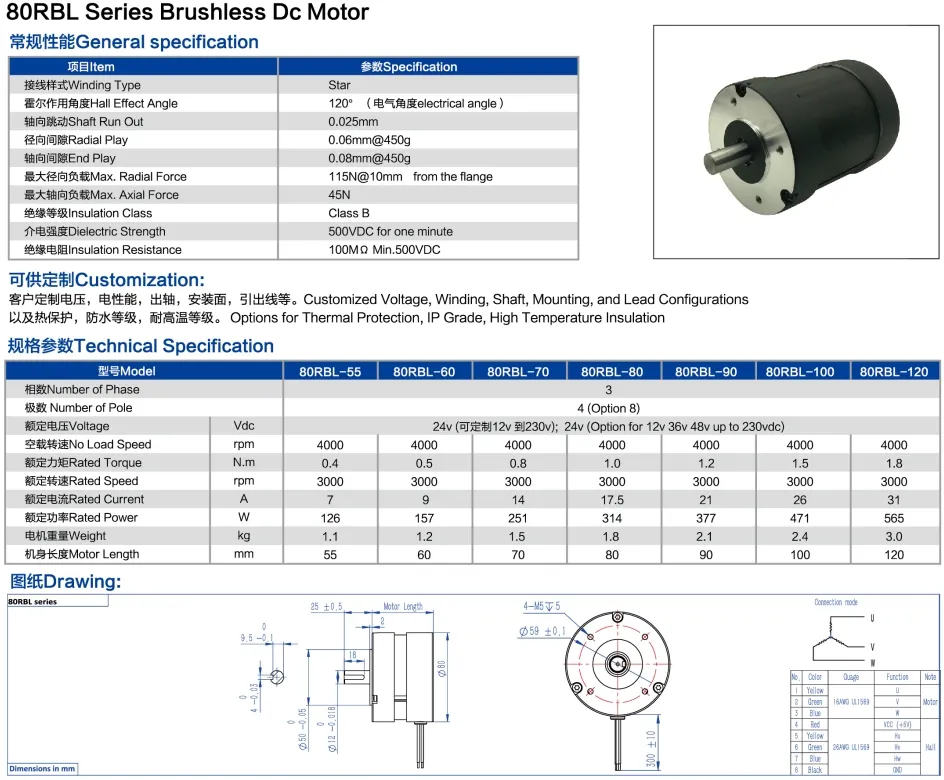

80mm High Torque Brushless DC Motor Overview

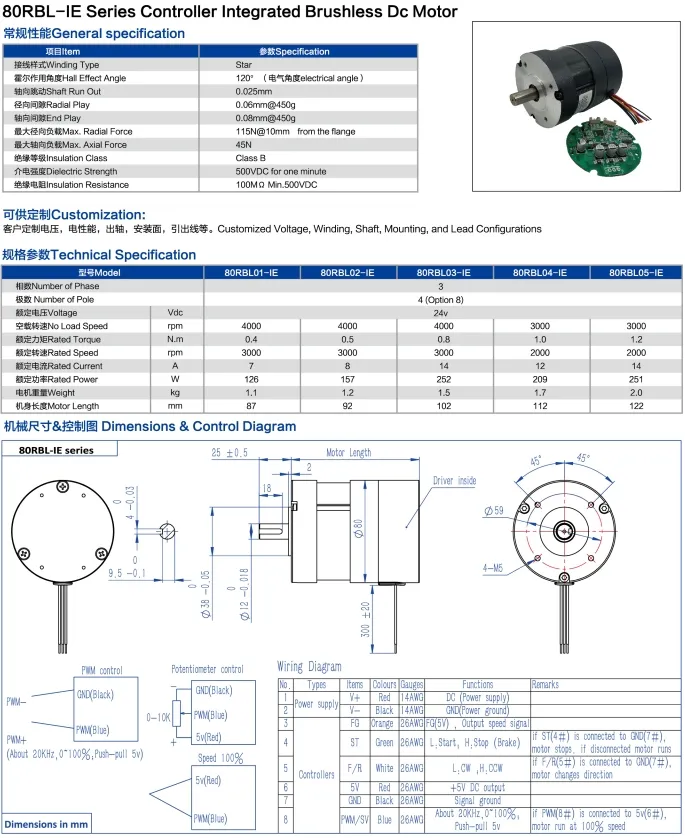

80mm Brushless Motor Dimensions

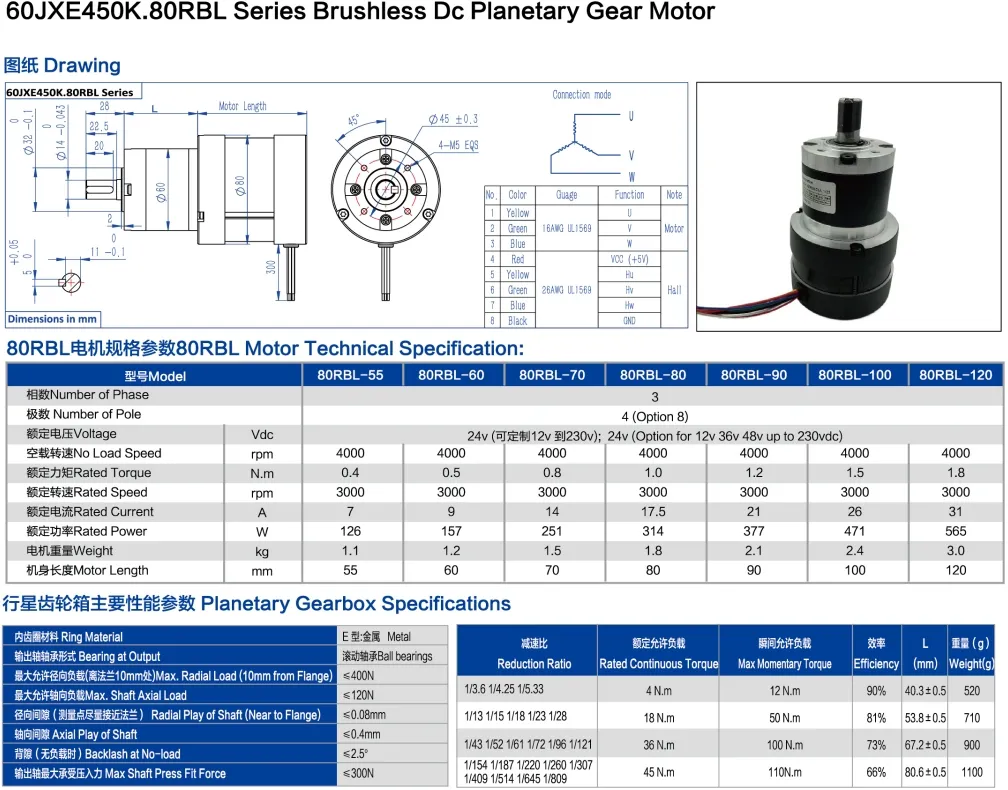

Brushless DC Motor Torque Curves

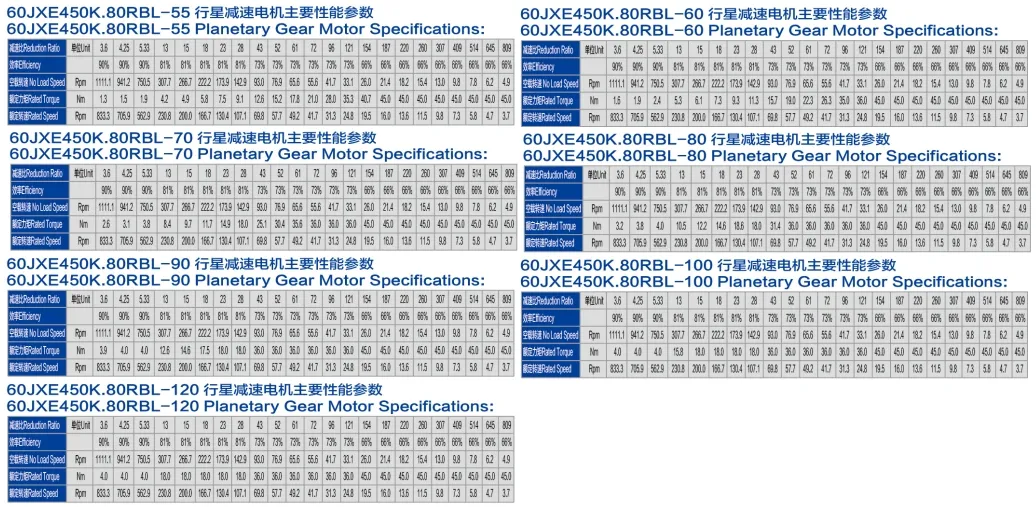

Brushless DC Motor Electrical Wiring Layout

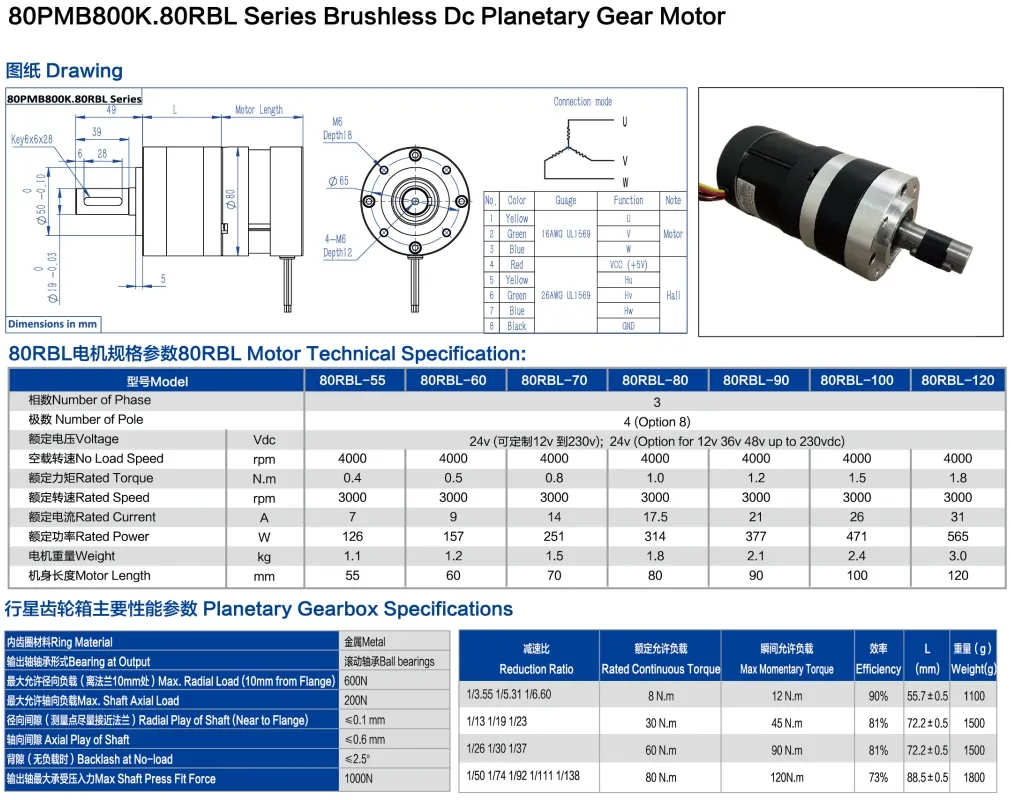

BLDC Motor Performance Characteristics

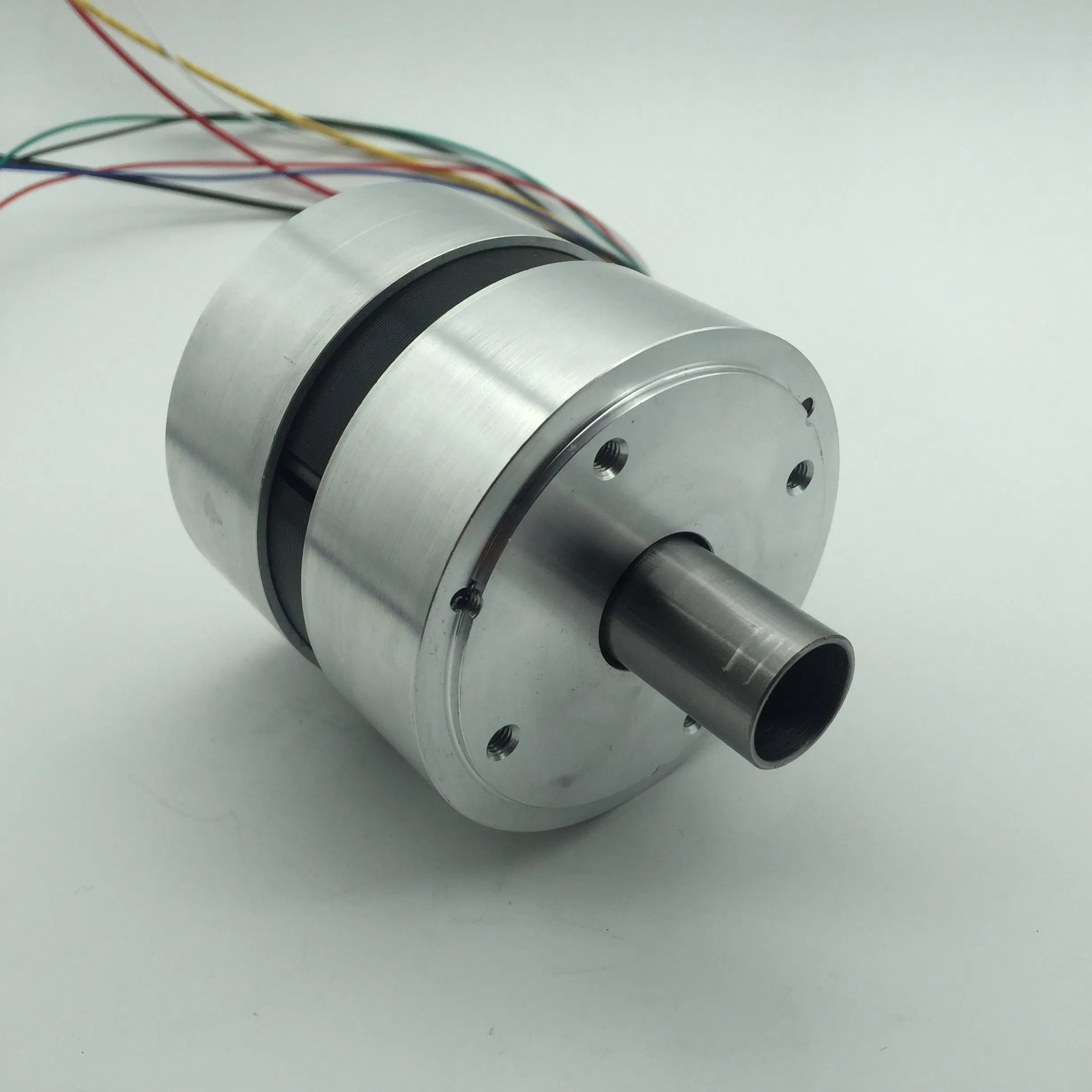

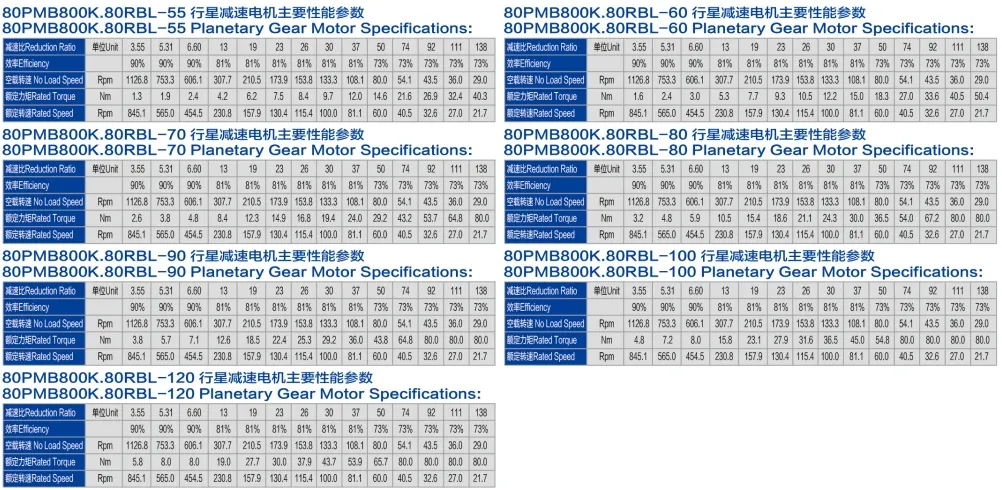

Brushless DC Motor Shaft Options

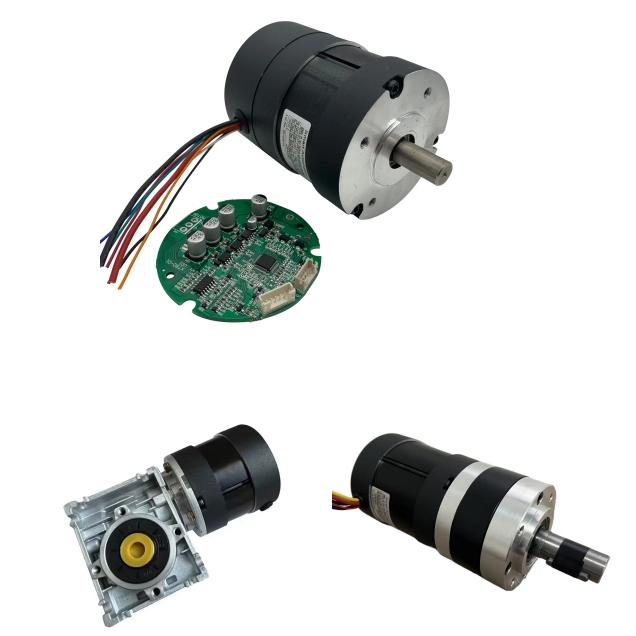

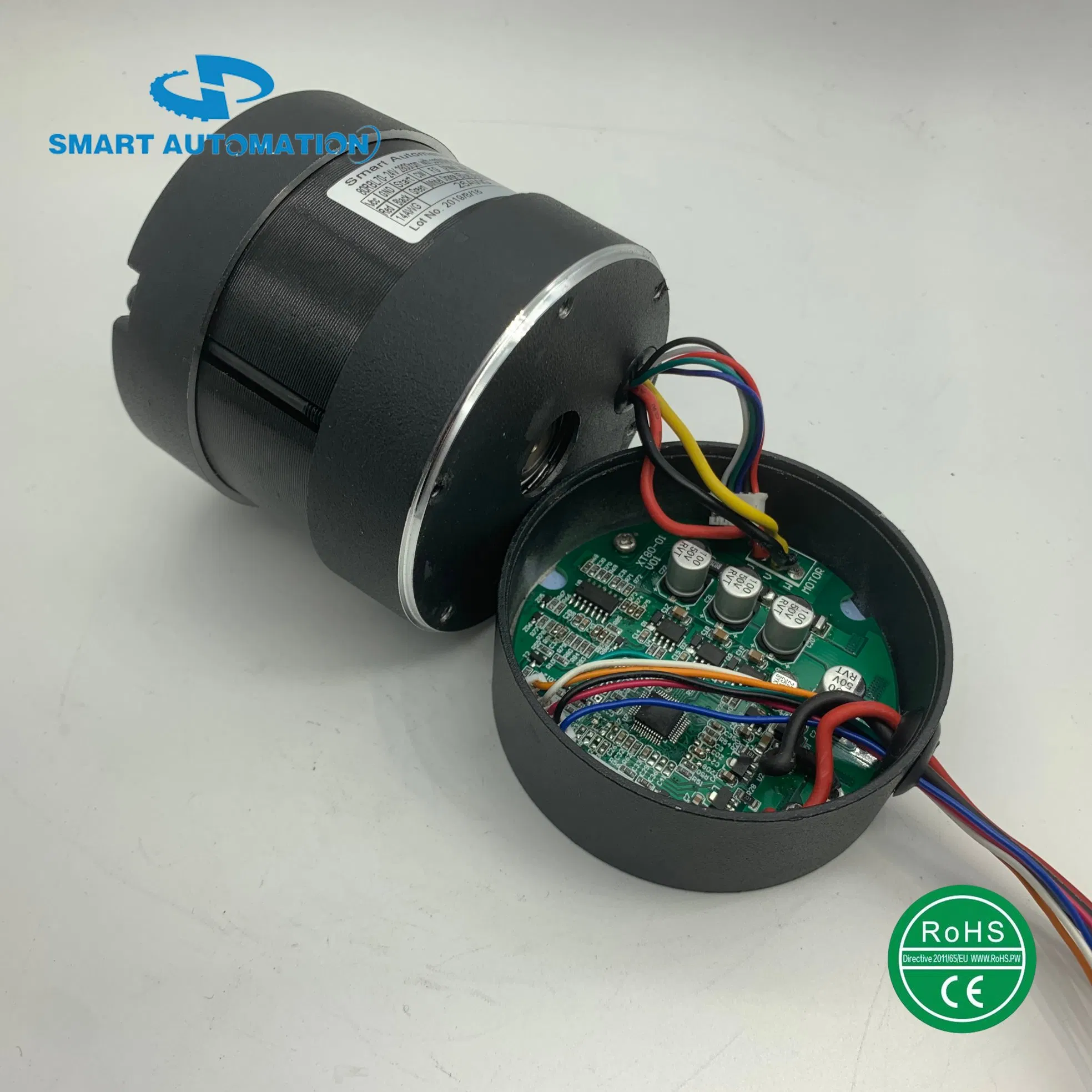

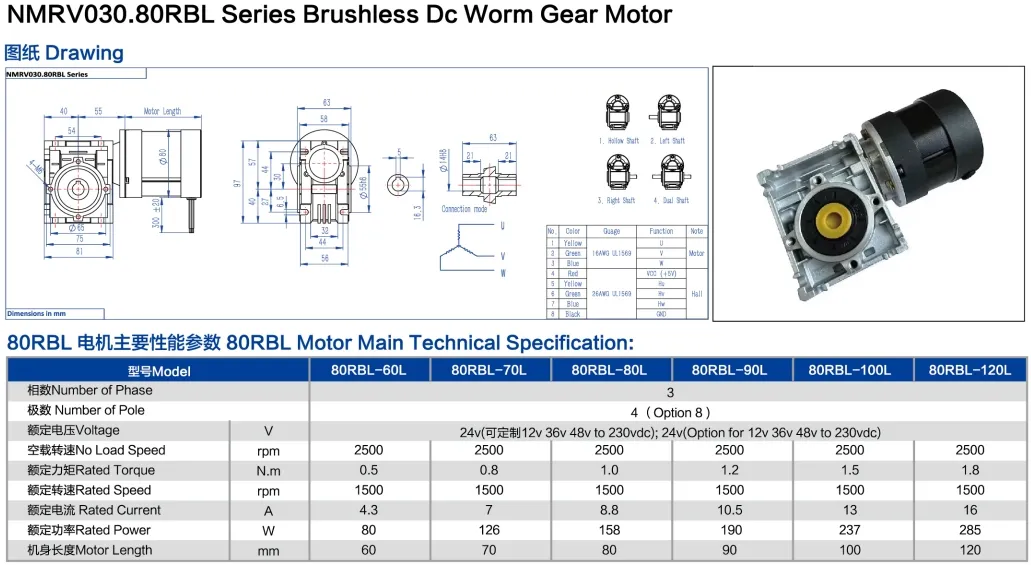

Integrated Controller details for Brushless Motors

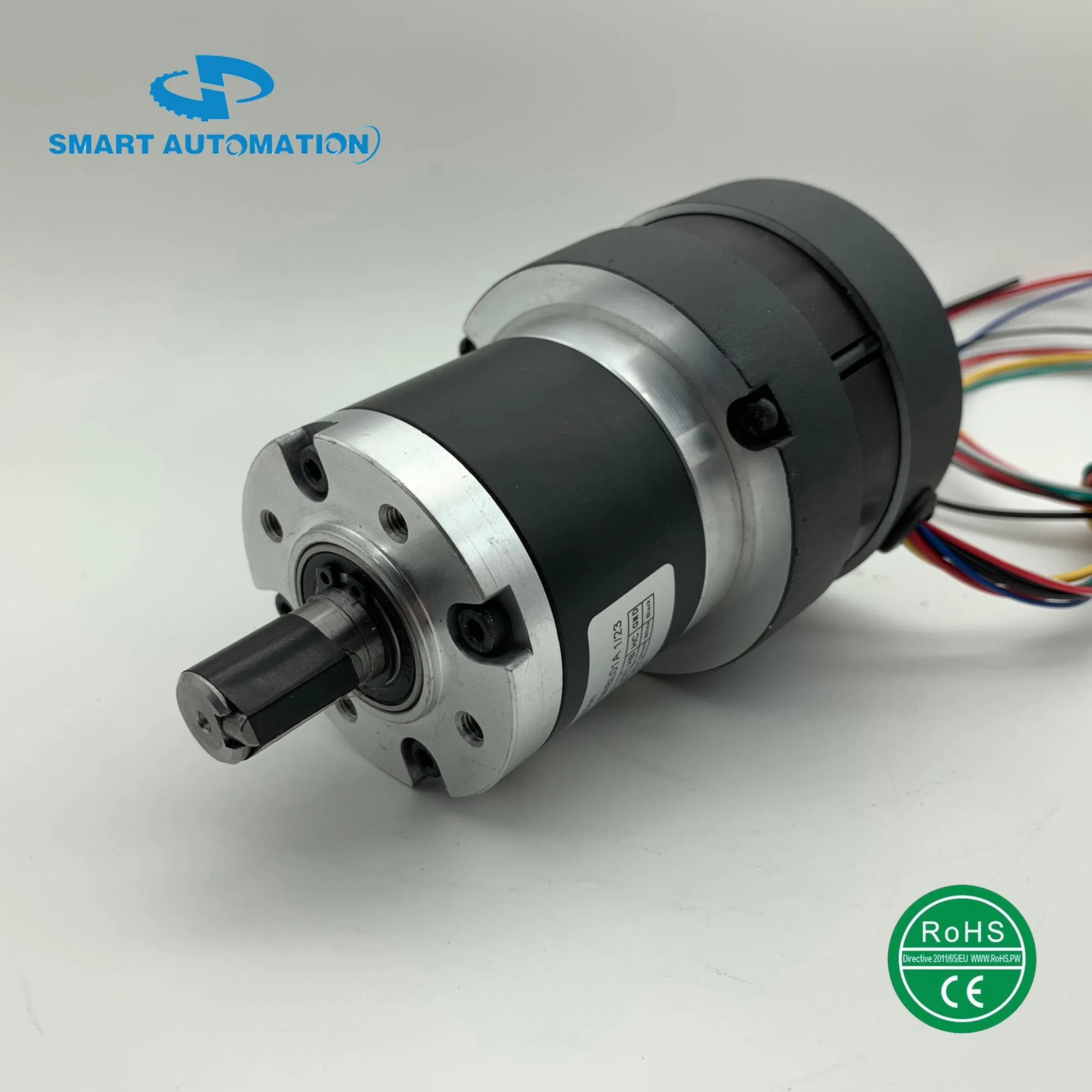

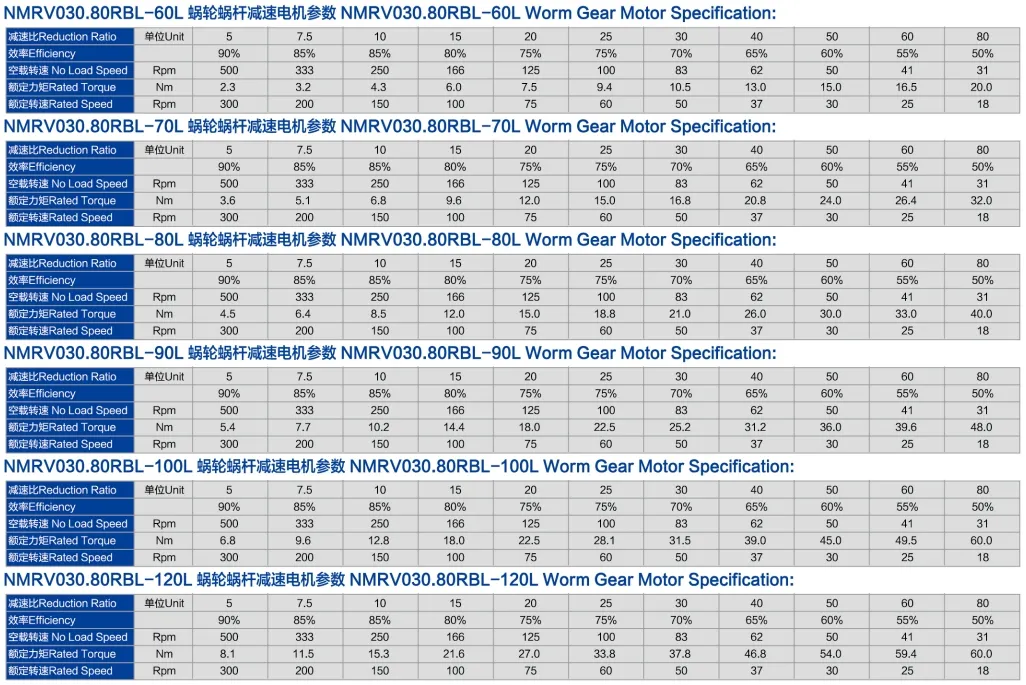

Gearbox Mounting and Compatibility

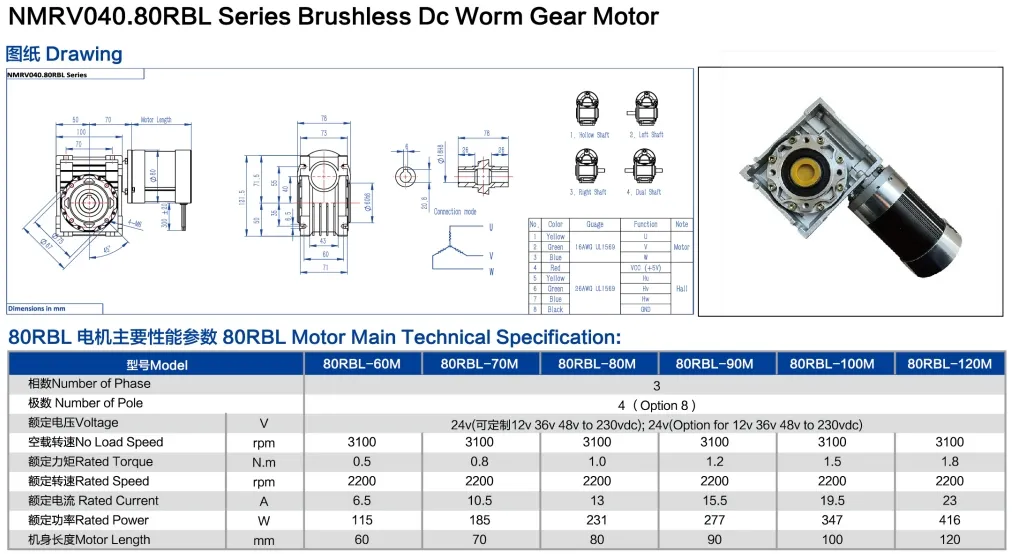

Brushless DC Motor Exploded Assembly View

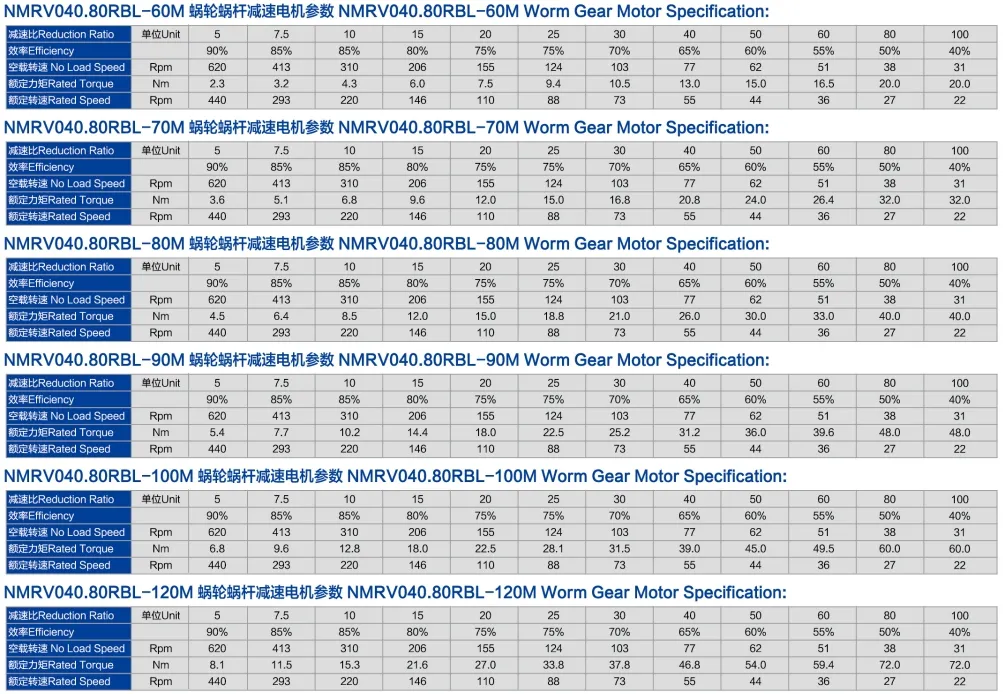

Safety and Mounting Guidelines

Frequently Asked Questions (FAQ)

Q1: Can I request customized voltage and dimensions for the 80BL Series motor?
Yes, absolutely. We offer fully customizable solutions where the voltage (ranging from 12V to 380VDC), physical dimensions, mounting configuration, and shaft features can be tailored to meet your precise requirements.
Q2: What options do I have for integrated accessories?
We can integrate a variety of essential components directly with your motor, including planetary or worm gearboxes, electric brakes, optical or magnetic encoders, and built-in controller drivers.
Q3: What are the torque and power capabilities of the 80mm BLDC motor?
The motor delivers a rated power from 150W up to 800W. It provides a rated torque of up to 3Nm on its own, which can be extended up to 120Nm when assembled with an integrated gearbox.
Q4: Are there options for environmental and thermal protection?
Yes. The motors support customizable casing protection levels from IP00 up to IP67. Thermal protection mechanisms and built-in EMI suppression options are also available to ensure highly reliable operation.
Q5: What certifications do the 80BL series brushless motors hold?
Our brushless motors are manufactured in strict compliance with quality and safety standards, holding ISO9001 and CE RoHS certifications.
