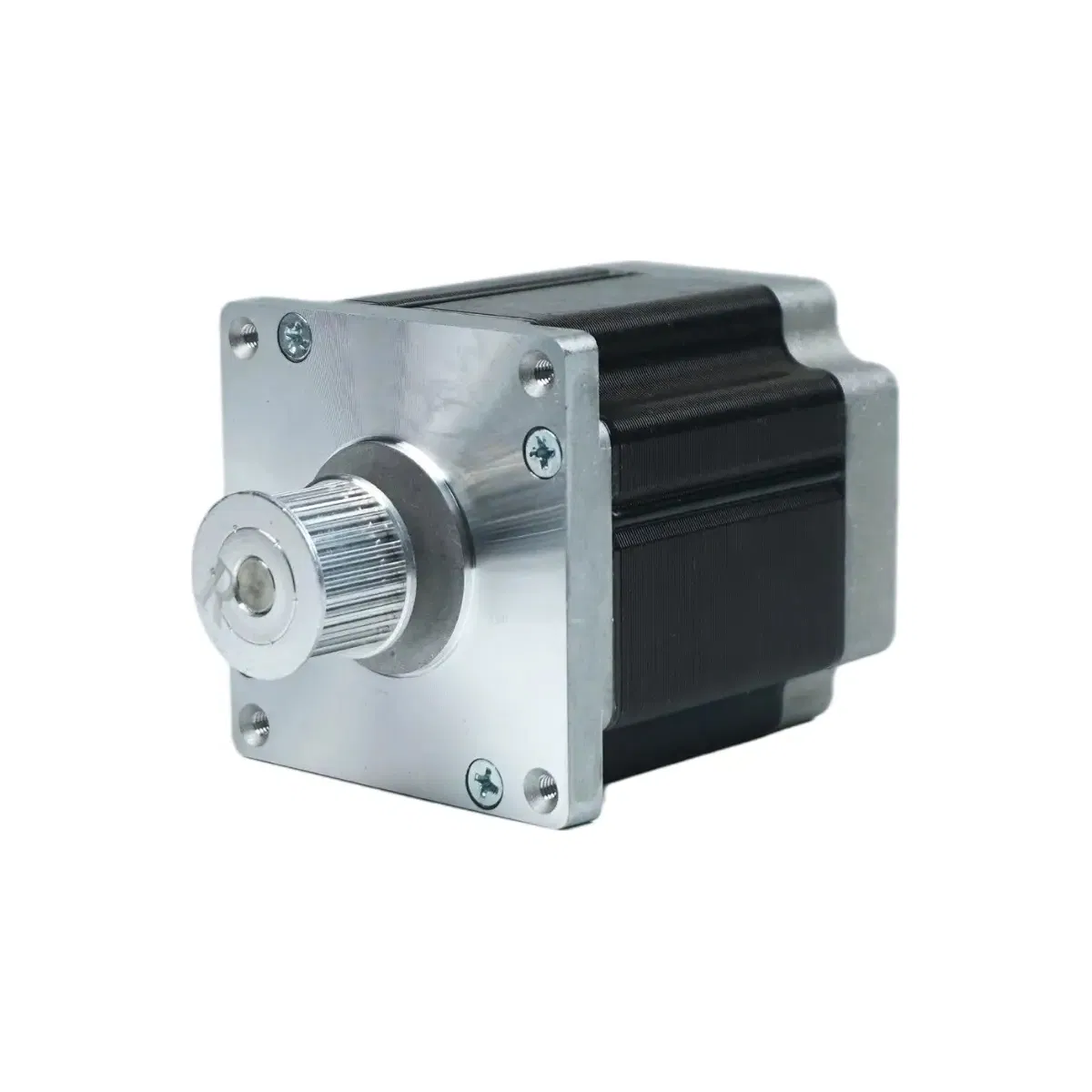

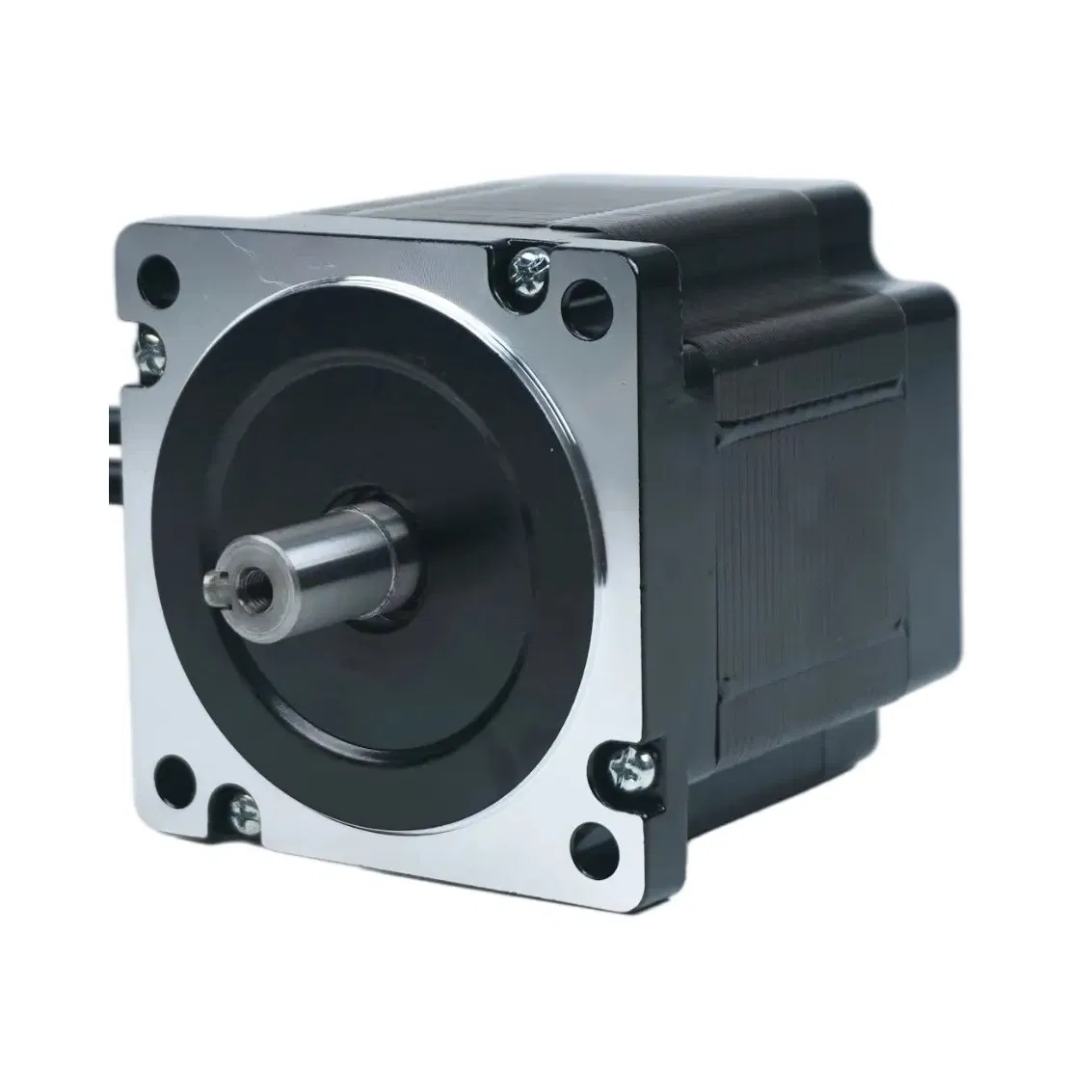

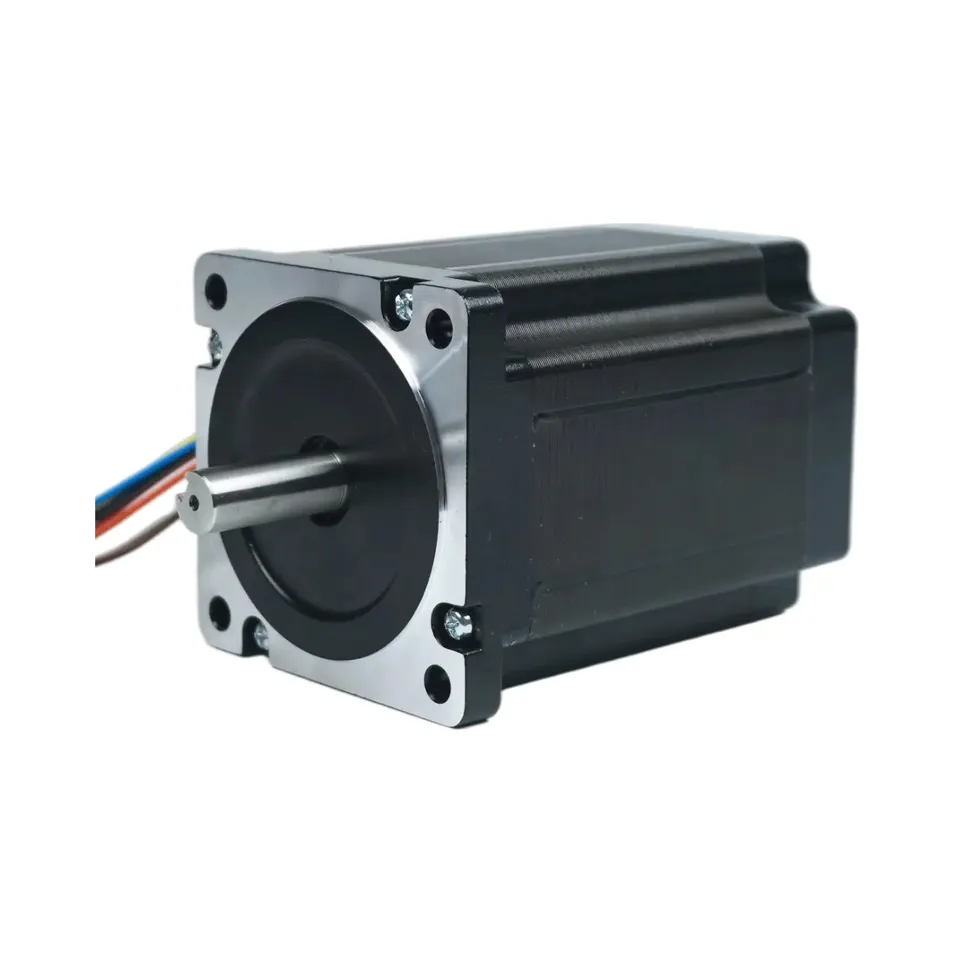

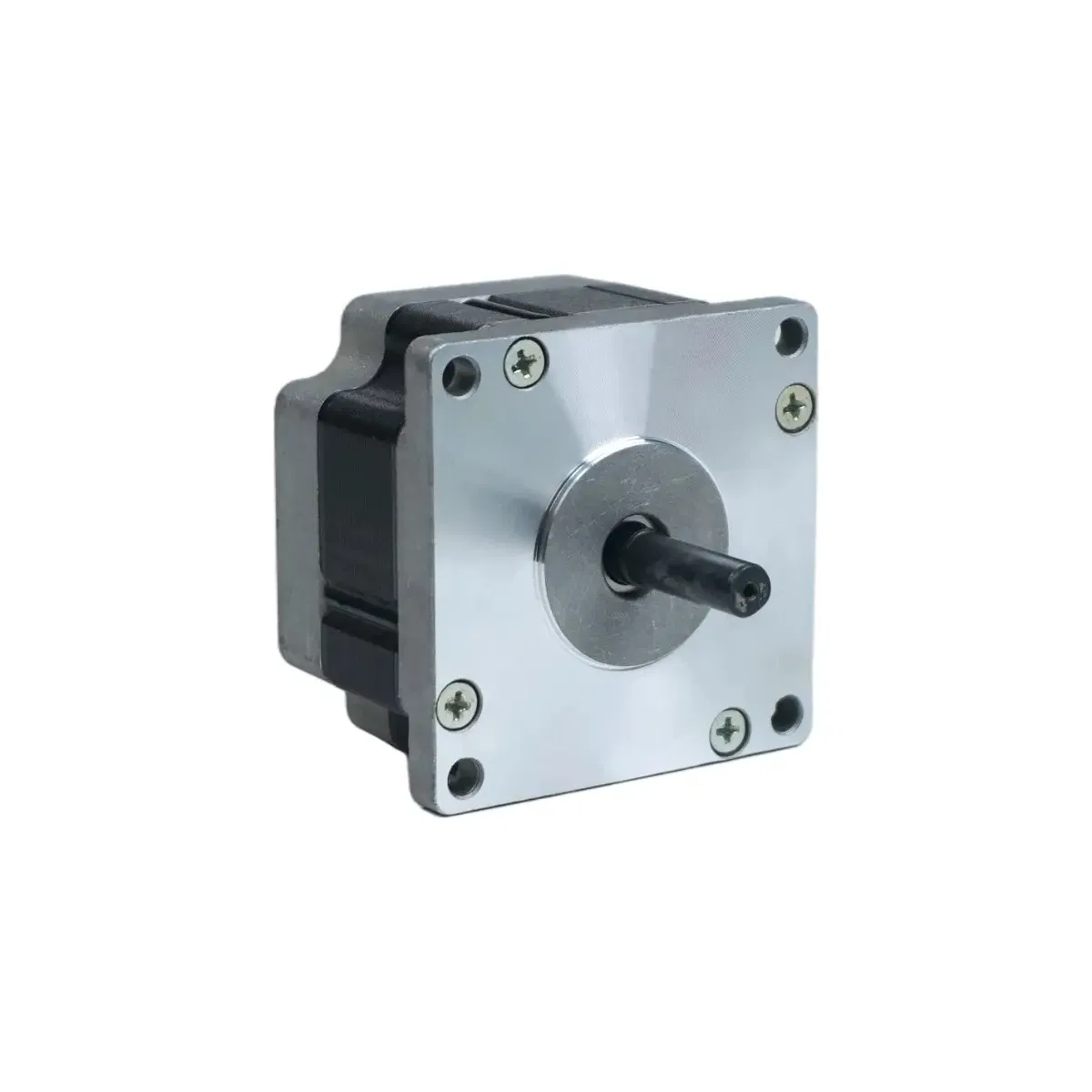

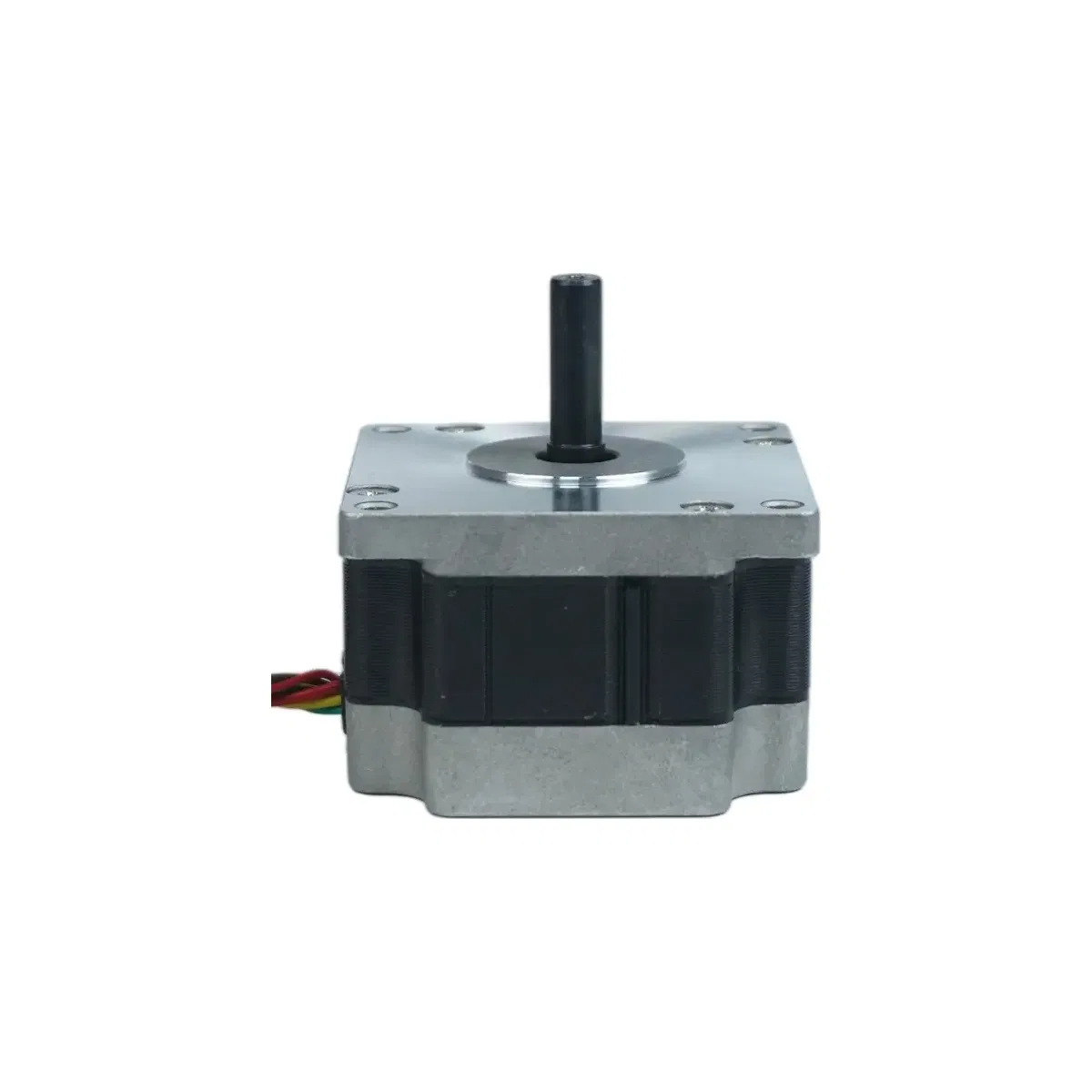

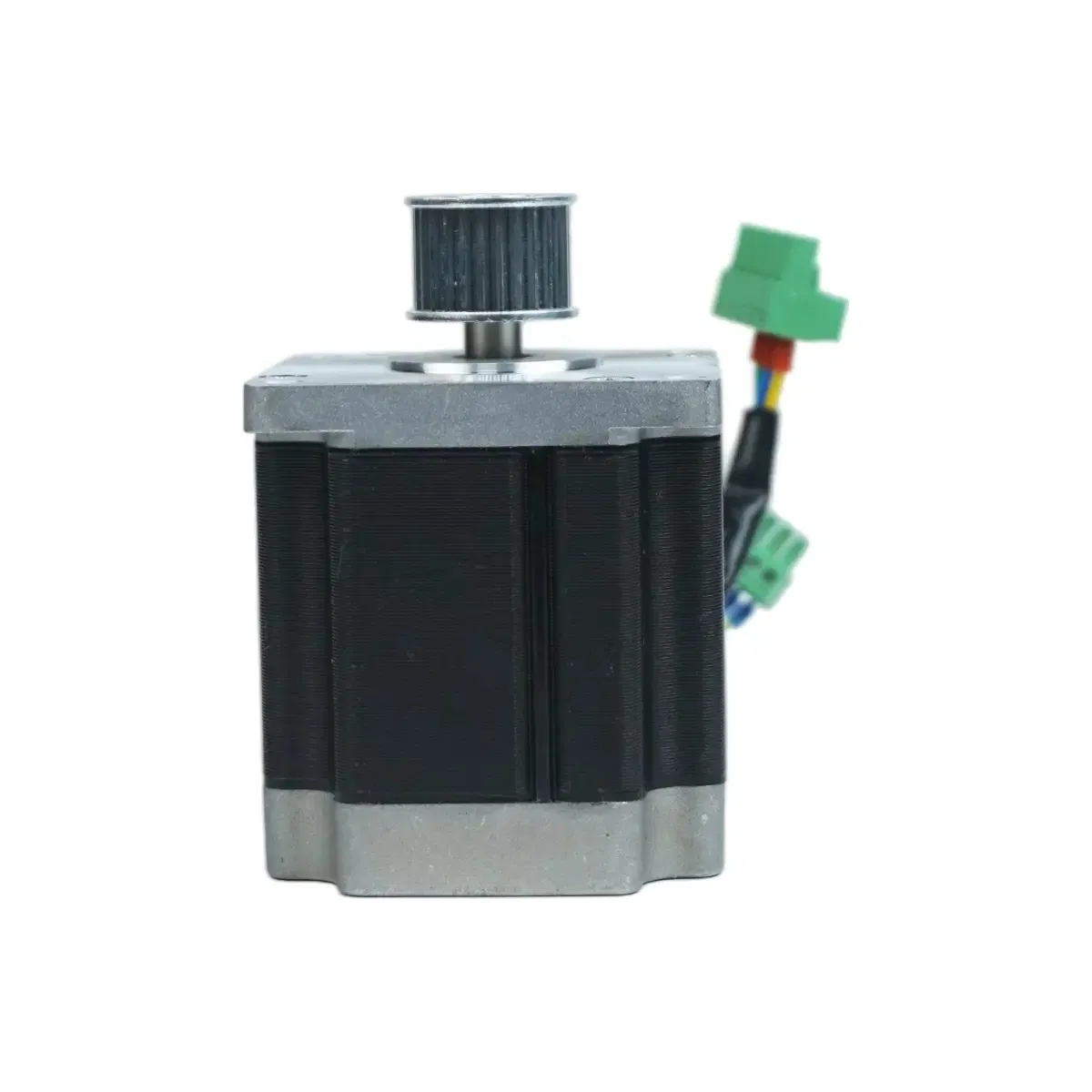

86mm (NEMA 34) Brushless DC Motor CW86BL-750W-48V

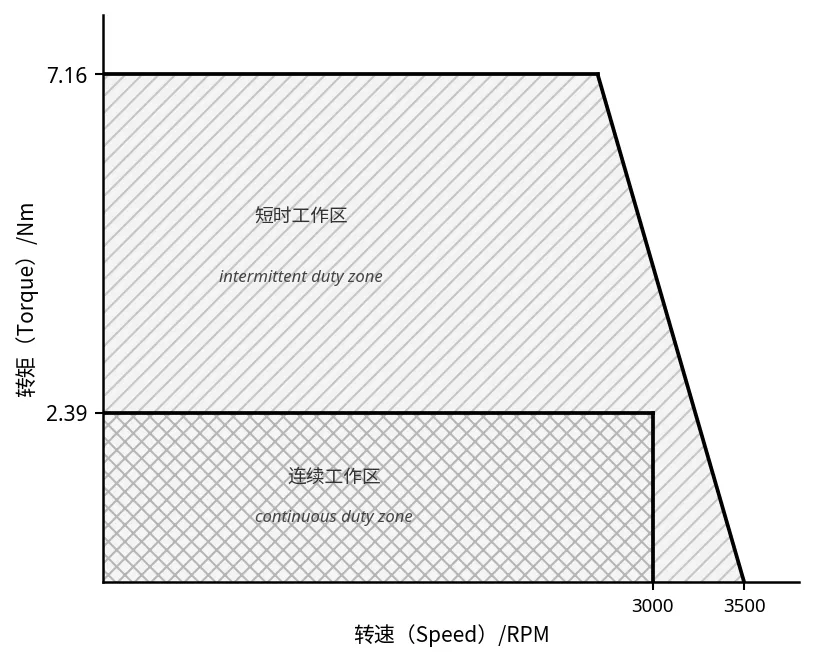

The CW86BL-750W is a high-performance 86mm (NEMA 34) brushless DC motor engineered specifically for AGV (Automated Guided Vehicle) and AMR (Autonomous Mobile Robot) drive wheel applications. Delivering 750W continuous output at 48V DC with a rated torque of 2.39 N·m and peak torque of 7.16 N·m, this motor combines compact dimensions with industrial-grade reliability.
| PARAMETER | VALUE |
|---|---|
| Rated Voltage | 48V DC (24V / 36V / 72V customizable) |
| Rated Power | 750 W |
| Rated Speed | 3,000 RPM |
| Rated Torque | 2.39 N·m |
| Peak Torque | 7.16 N·m |
| Rated Current | 19.5 A |
| No-load Speed | 3,300 RPM |
| Efficiency | ≥ 85% |

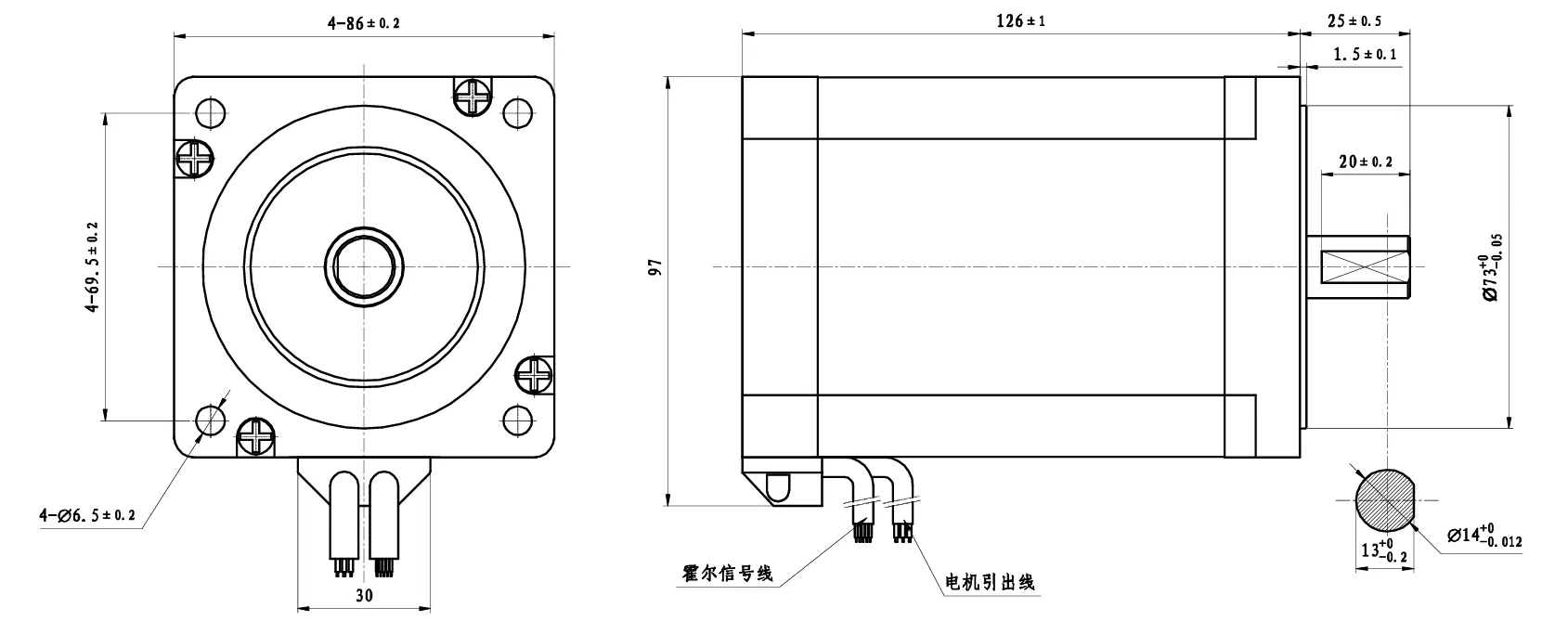

| Flange Size | 86 × 86 mm |
| Shaft Diameter | 14 mm (customizable) |
| Motor Length | 125 mm (customizable) |
| Weight | Approx. 2.8 kg |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP54 (IP65 optional) |
| Feedback | Hall Sensor (encoder optional) |
| Operating Temp. | -20°C ~ +50°C |
