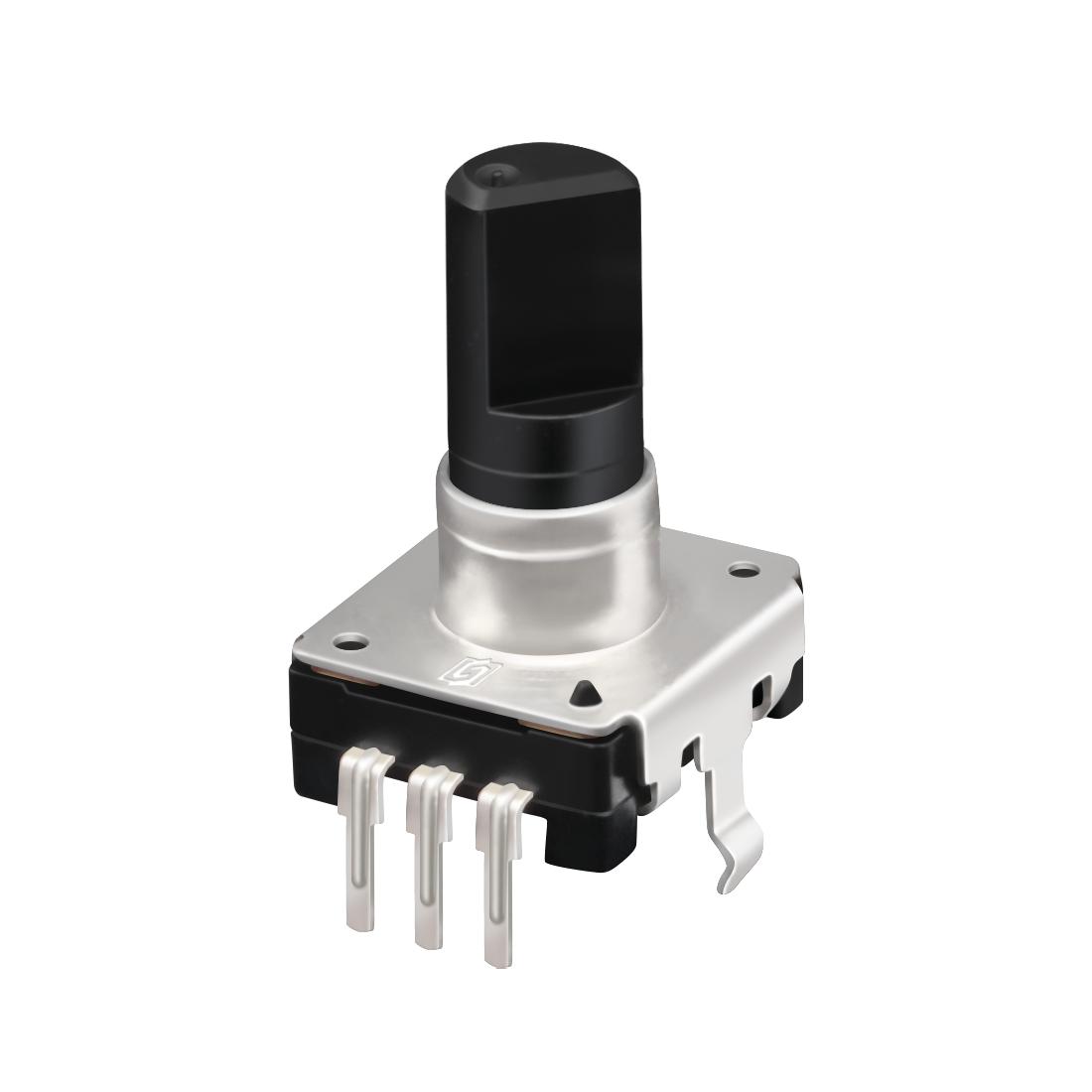

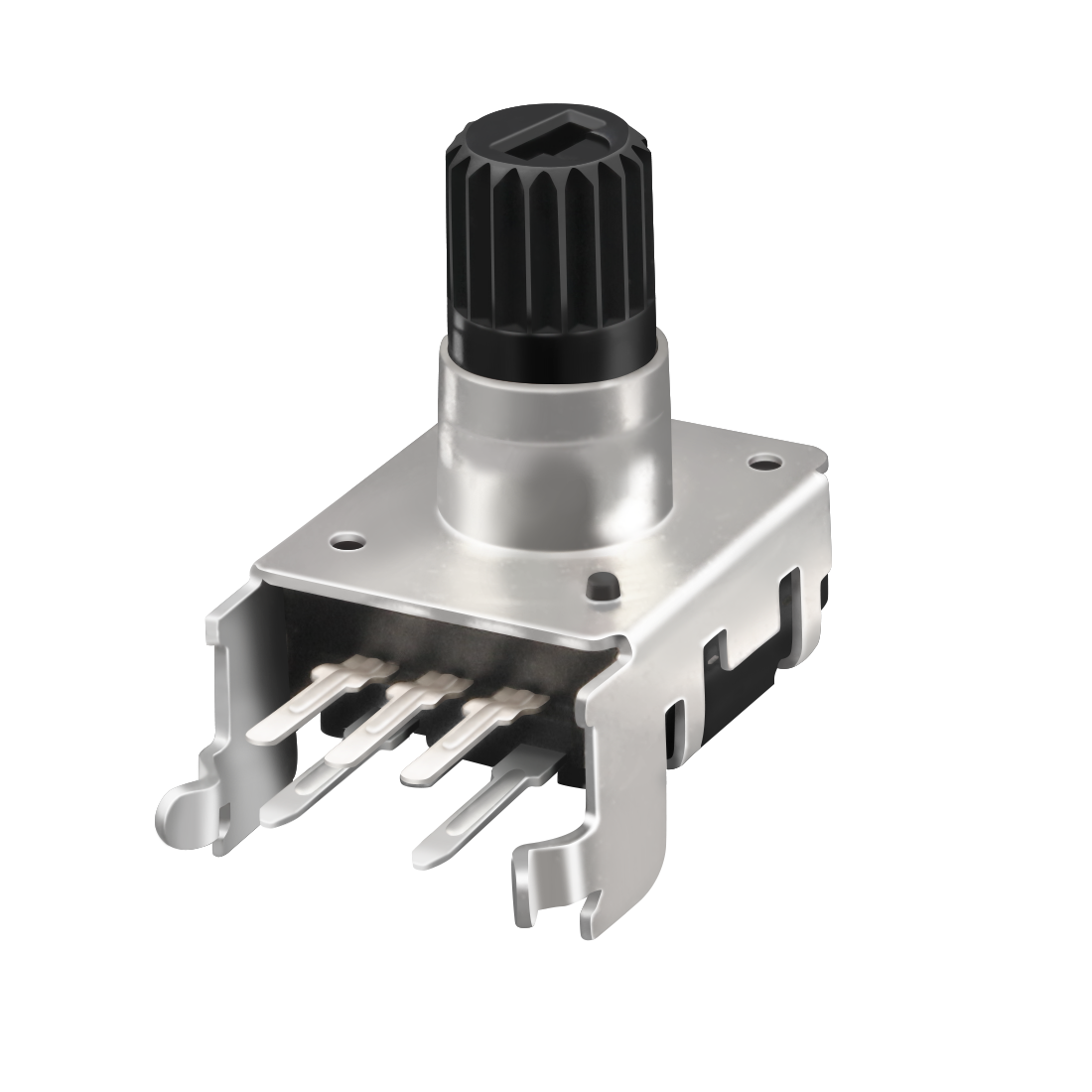

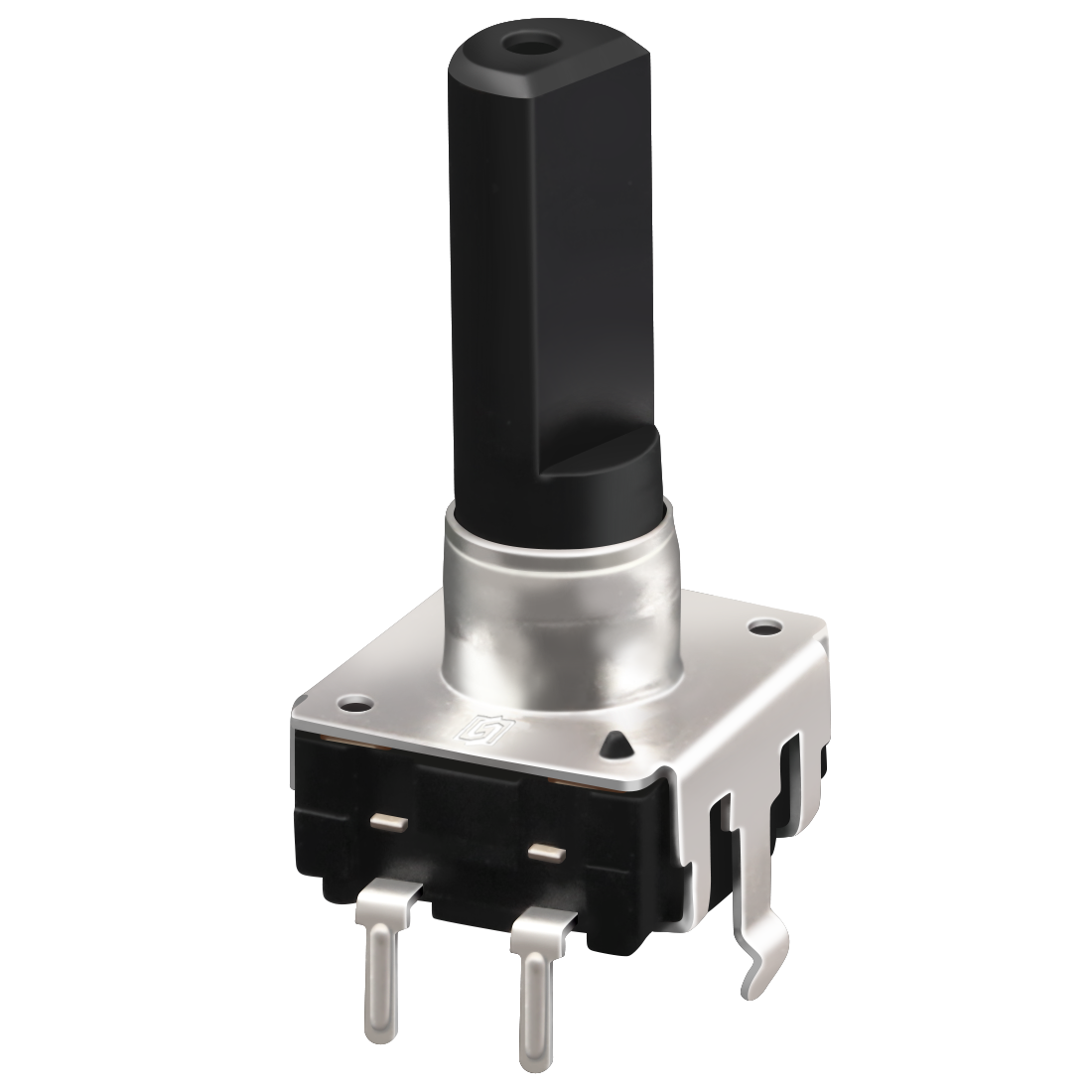

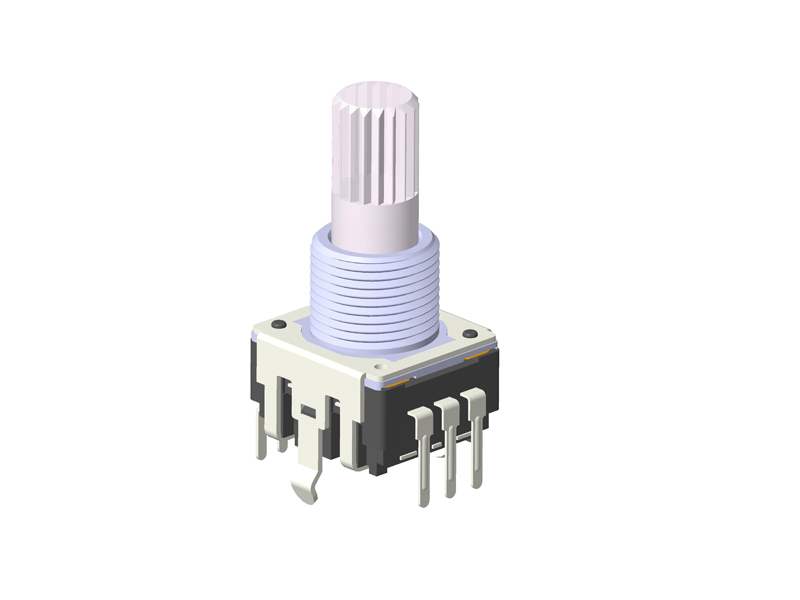

EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
1 / 5
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders
EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders

EC12 12mm Plastic Transparent Shaft RGB Rotary Incremental Optical Encoder Product Category Encoders

Send Inquiry

Product Description

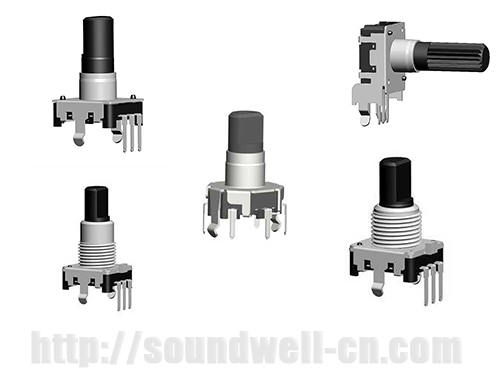

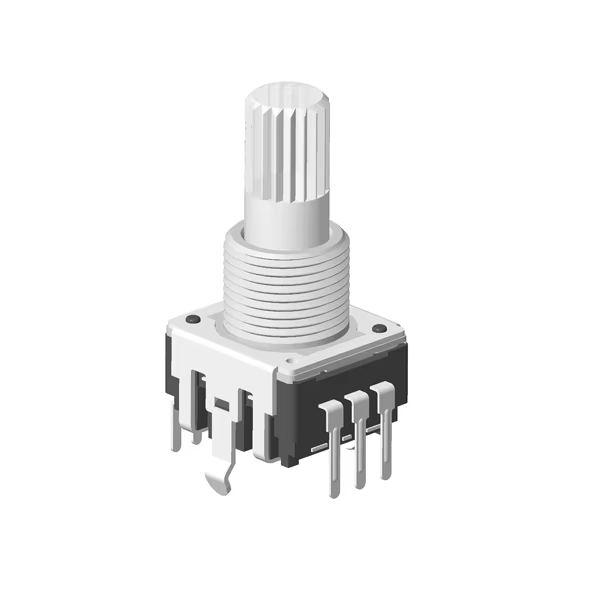

EC12 Rotary Encoder
🔹 EC12 Push Button Switch Rotary Encoder Main Specifications
Feature Specification Details
Dimensions12.5mm
Rated PowerDC 5V
Number of Detent12 / 18 / 24 / 30
Pulses12 / 15 / 18
Working Temperature-40°C ~ 85°C
Rotational Life30,000 cycles Min
Push Operating Life20,000 cycles Min
ApplicationsAutomotive electronics, professional audio, household appliances, and other related electronic devices.
Product FeaturesSmall size encoder with highly reliable performance; Insulated shaft with push-on switch options; Available in many different variants.
FunctionsFrequency modulation, volume adjustment, temperature adjustment, function selection, etc.
⚙️ MECHANICAL CHARACTERISTICS
1.
Rotational torque: 30-200gf.cm
2.
Number of detent: 12/18/24/30
3.
Switch circuit and number of pulse
4.
Travel of switch: 0.5 ± 0.3 mm
5.
Operating force of switch: 450 ± 200gf
6.
Shaft wobble (mm p-p): 1.0 x L / 30mm p-p
⚡ ELECTRICAL CHARACTERISTICS
1.
Resolution: 12/15/18 pulses/360°
2.
Phase difference: ≥4ms
3.
Power rating: DC 5V
4.
Insulation resistance: 10MΩ 1 Minute at DC 50V
5.
Dielectric voltage: 1 Minute at AC 50V
⏳ ENDURANCE CHARACTERISTICS
1.
Rotational life: 30,000 cycles Min
2.
Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

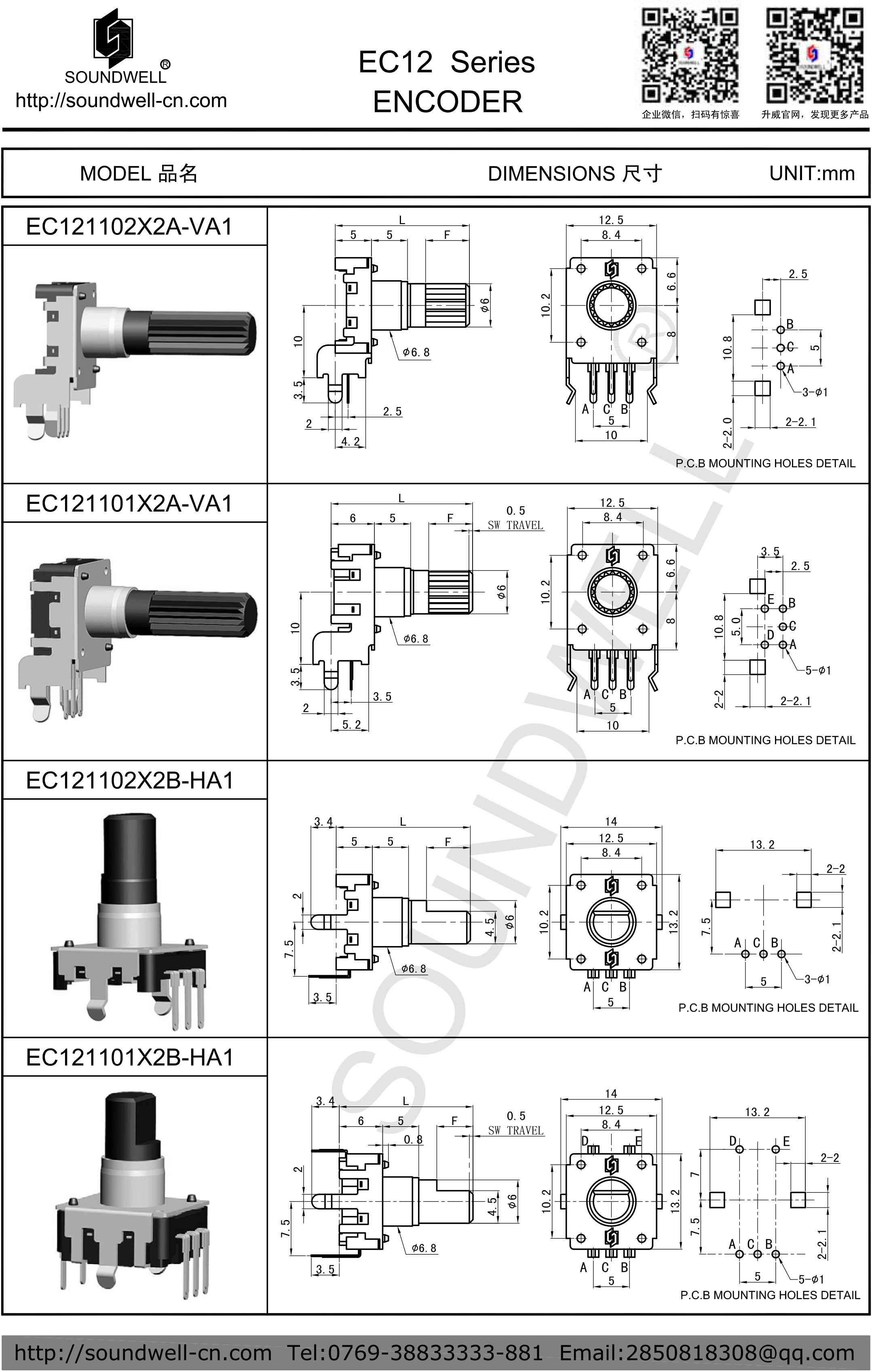

EC12 Detail 1

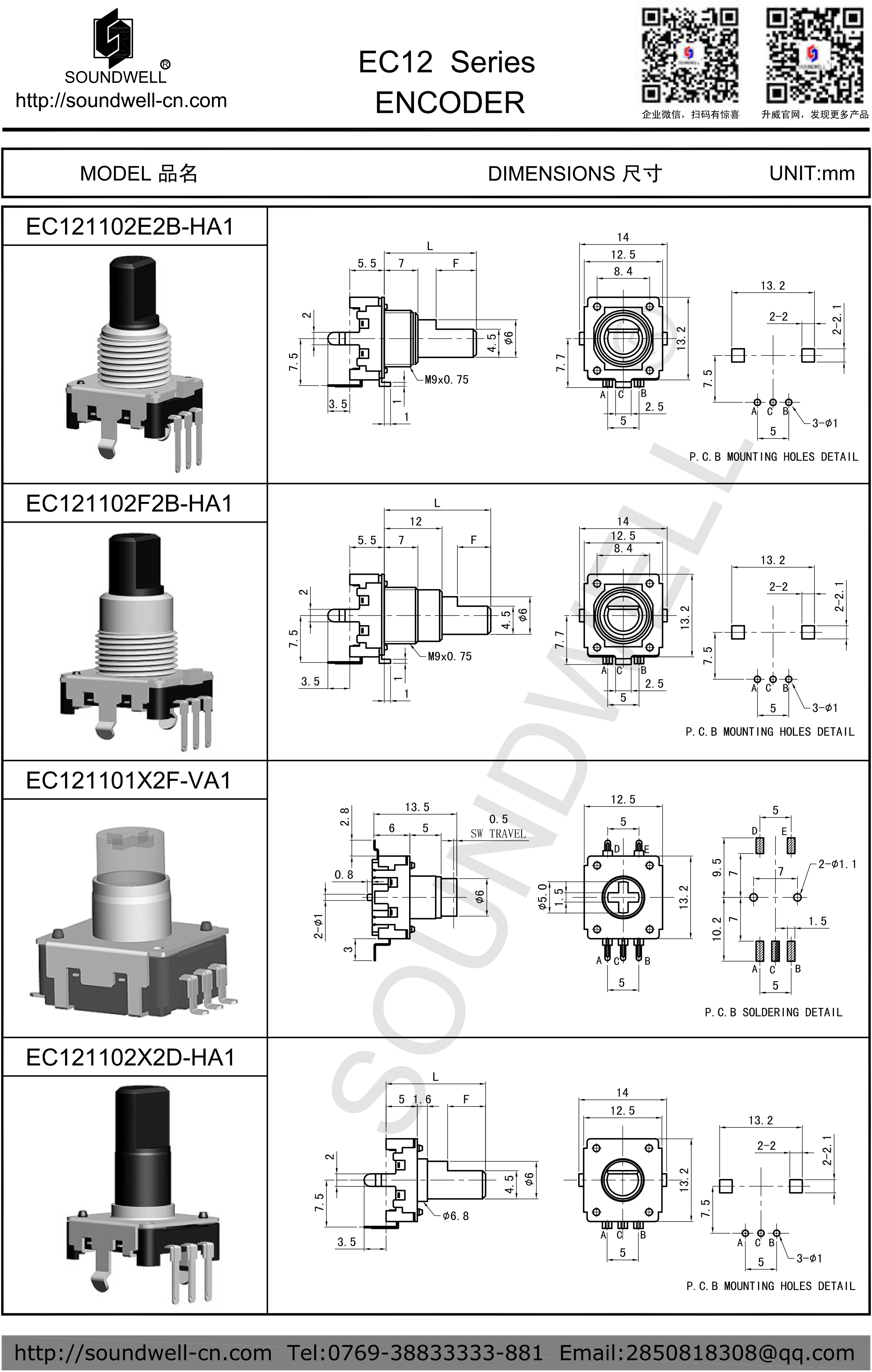

EC12 Detail 2

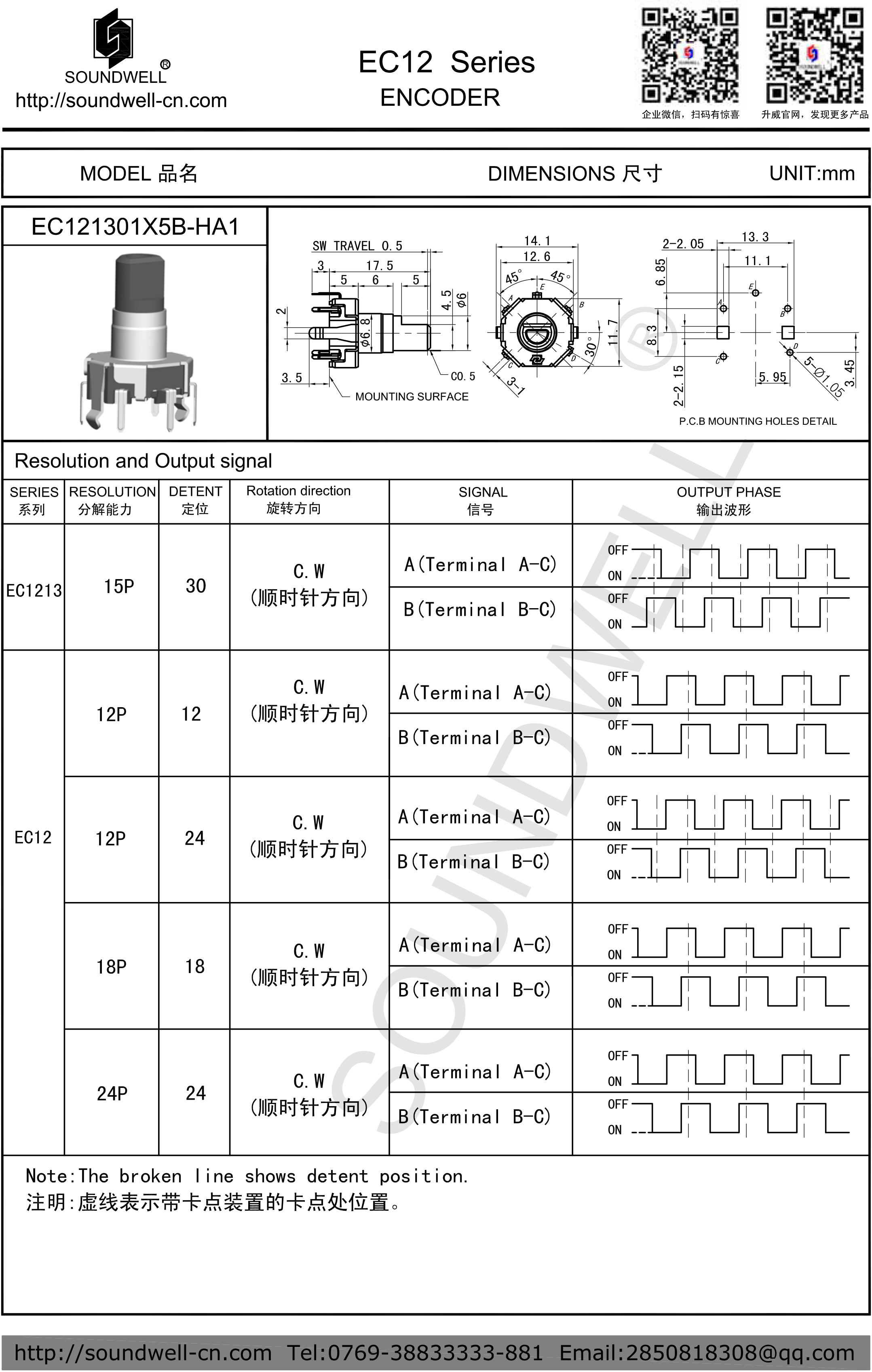

EC12 Detail 3
Frequently Asked Questions
Q1: What are the primary applications for the EC12 rotary encoder? The EC12 series is widely used in automotive electronics, professional audio equipment, and household appliances for functions like volume adjustment and temperature control.
Q2: Does this model support a push-button function? Yes, the EC12 series includes options for an insulated shaft with a built-in push-on switch.
Q3: What is the expected rotational life of the EC12 encoder? The encoder is designed for high reliability with a minimum rotational life of 30,000 cycles.
Q4: What is the operating temperature range for this device? The EC12 rotary encoder operates effectively in temperatures ranging from -40°C to 85°C.
Q5: How many detent and pulse options are available? The series offers multiple variants, including 12, 18, 24, or 30 detents, with corresponding pulse options of 12, 15, or 18.
Q6: What is the rated power for the EC12 series? The rated power for these encoders is DC 5V, suitable for most electronic control circuits.
