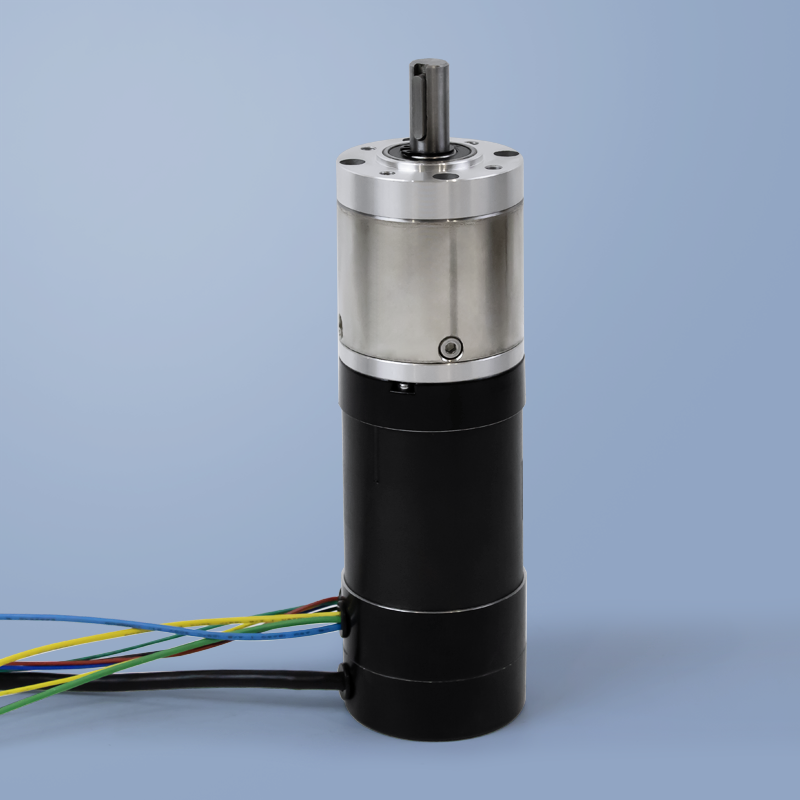

3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
1 / 5
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m
3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m

3-Phase 4-Pole 24V 180W BLDC Planetary Gear Motor Encoder 4000RPM Permanent Magnet Construction Flange Mount Drip-proof 0.43N.m

Send Inquiry

Product Description

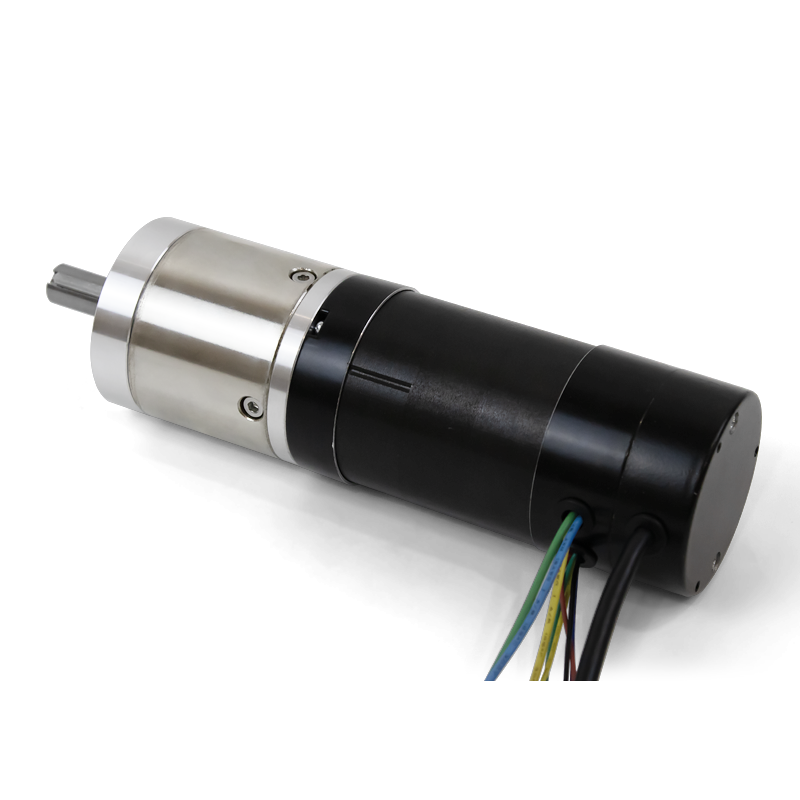

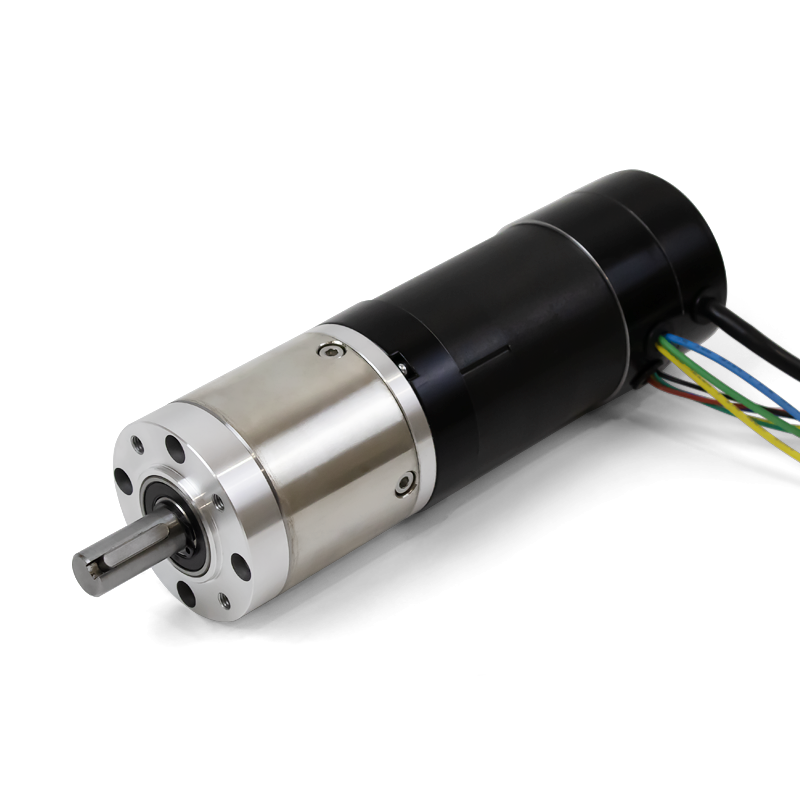

3 Phase 4 Poles 24V 180W 4000RPM BLDC Motor

Brushless DC Planetary Gear Motor with Encoder. BLDC motors are replacing classic DC motors and stepper motors in more and more applications. These motors are three-phase and feature digital Hall sensors in the standard version, enabling precise speed control with simple servo controllers.

BLDC Motor
Product Features
  • ✓ High efficiency and high reliability
  • ✓ Low operating voltage design for safety and efficiency
  • ✓ Available Flange sizes: Nema 17 (42mm), Nema 23 (57mm), Nema 34 (86mm), Nema 42 (110mm)

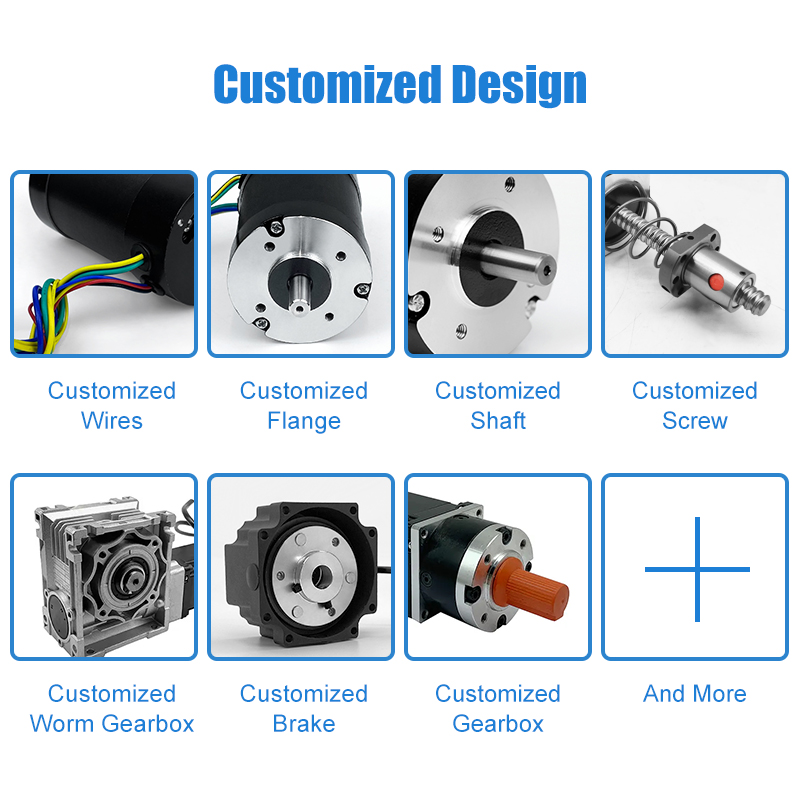

  • ✓ Customizable options: Encoder, shaft, flange, insulation, bearing, and environmental protection
Technical Specifications
Parameters Unit Value
Model No. Model 57BYB94B040H
Number of phase Phase 3
Number of Poles Poles 4
Rated voltage VDC 24
Rated speed Rpm 4000
Rated torque N.m 0.43
Rated current Amps 10
Rated power W 180
Body length mm 94

* Custom specifications are available upon request for special applications.

Product Series Overview
Electrical Machinery Series
Transmission Series
Control System Series
Technical Drawings

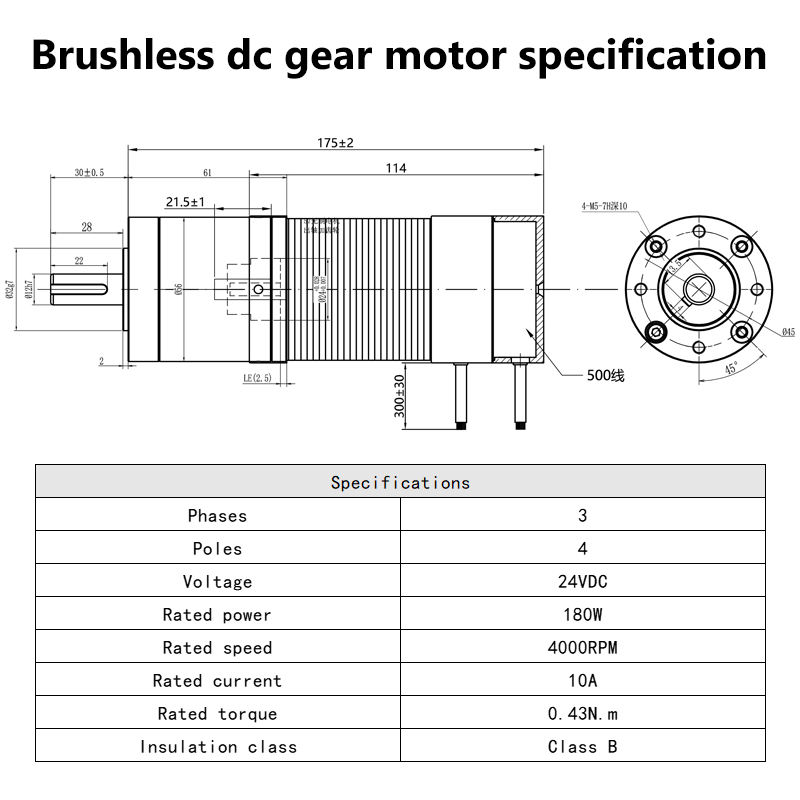

Motor Dimension Drawing
Factory & Production Display
Workshop
Production Line
Quality Control
Warehouse
Packaging
Shipping
Frequently Asked Questions
How to choose the suitable stepper or BLDC motor?
There are several important factors: size, length of the motor, holding torque, voltage, and current. Once these parameters are confirmed, we can recommend the most suitable model for your application.
Are there other methods to finalize the motor model?
Yes, you can provide the model number of the motor you are currently using or describe your application requirements, and our engineers will assist in finding a compatible or improved version.
When can I get the technical drawing of the motor?
Standard drawings are available upon request. For customized orders, we provide detailed technical drawings after the order is placed to ensure all specifications meet your needs.
Do you support customized motor shafts or flanges?
Absolutely. We offer customization options for shaft diameter, length, shape (D-cut, keyed, etc.), and flange dimensions to fit your specific machinery.
What is the typical lead time for production?
For standard models, production typically takes 7-15 days. For customized or bulk orders, the lead time usually ranges from 20-30 days depending on the complexity.
Do your BLDC motors come with integrated controllers?
We offer both standalone motors and motors with integrated drivers or encoders. Please specify your preference when sending an inquiry.
