63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
1 / 5
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor

63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications

Model NO.:
63zyt series
Function:
Control, Driving
Casing Protection:
Closed Type
Number of Poles:
2
Working Principle:
Brush
Certification:
ISO9001, CE, RoHS
Voltage:
12V 24V Up to 230VDC
Power:
Customized 10W Up to 300W
Specification:
Size 63mm
Production Capacity:
10000 PCS Per Month

Product Description

63zyt Series Brushed DC Motor

We provide customizable voltage, dimensions, performance, shafts, and mounting options to meet your specific requirements.

Integrated Solutions: We offer integrated encoders, gearboxes, and brakes to provide a complete motion control solution.

Please send your inquiry for the most cost-effective solution and proposal.

Features Details & Options
Diameter63mm
Rated Voltage12V, 18V, 24V, 36V, 48V up to 380VDC
Rated TorqueWith gearbox up to 30Nm - 45Nm
Rated SpeedCustomized
Rated Power30W - 200W
Protection ClassOption IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMIEMI suppression available
ThermalThermal protection available
GearboxOption with planetary or worm gearbox assembled
BrakeOption with electric brake assembled
EncoderOption with Optical or Magnetic encoders assembled
ControllerOption with controller integrated for BLDC Motors

Product Showcase

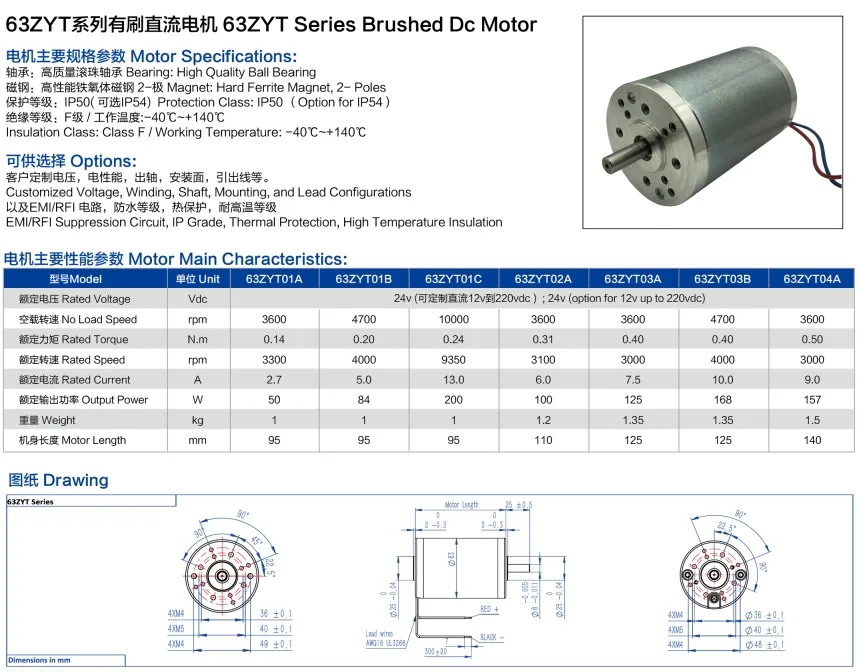

63zyt Series Brushed DC Motor

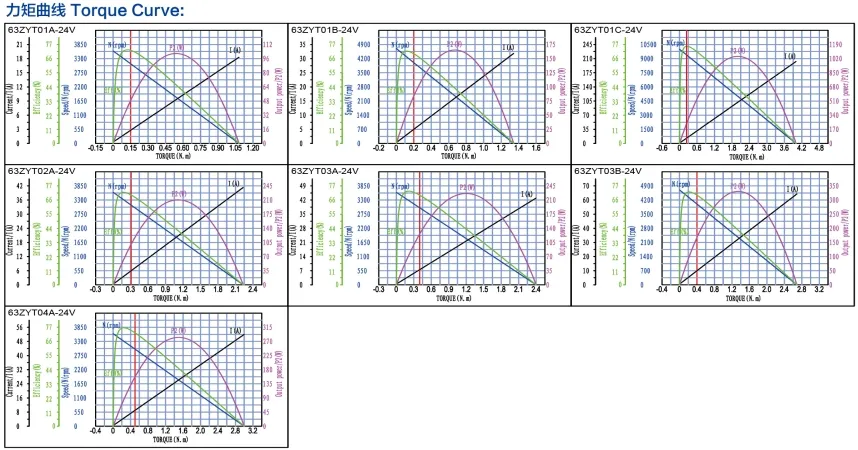

DC Motor Specifications
63mm Motor Detail View

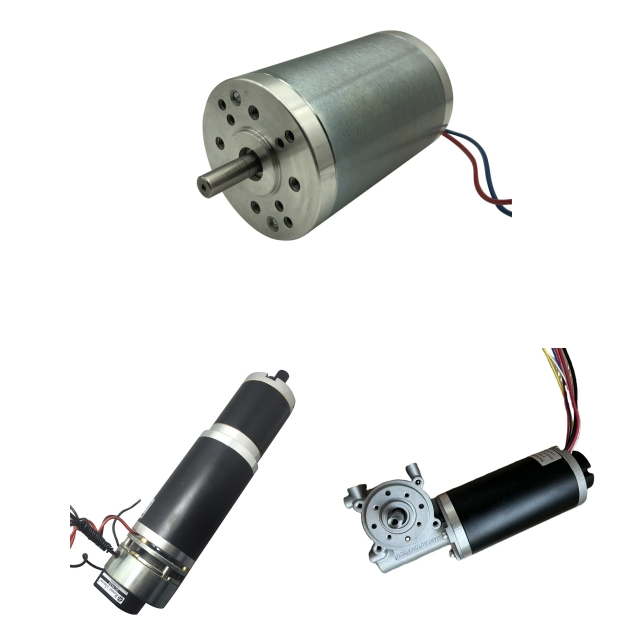

63mm Motor Components

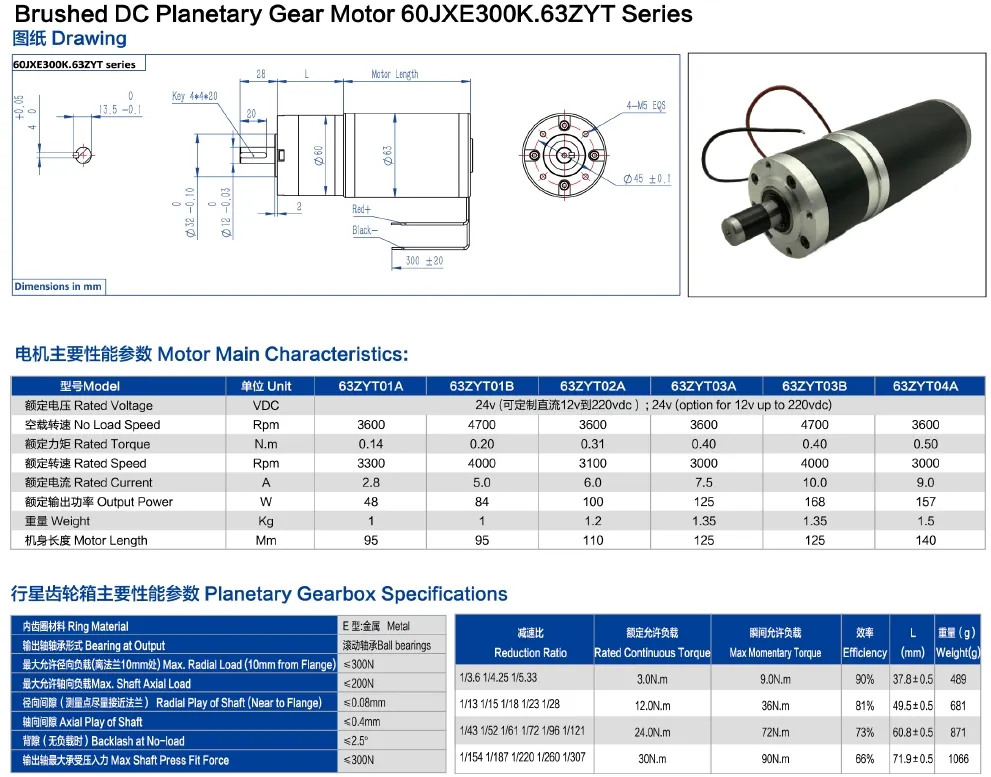

63mm Planetary Gear Motor

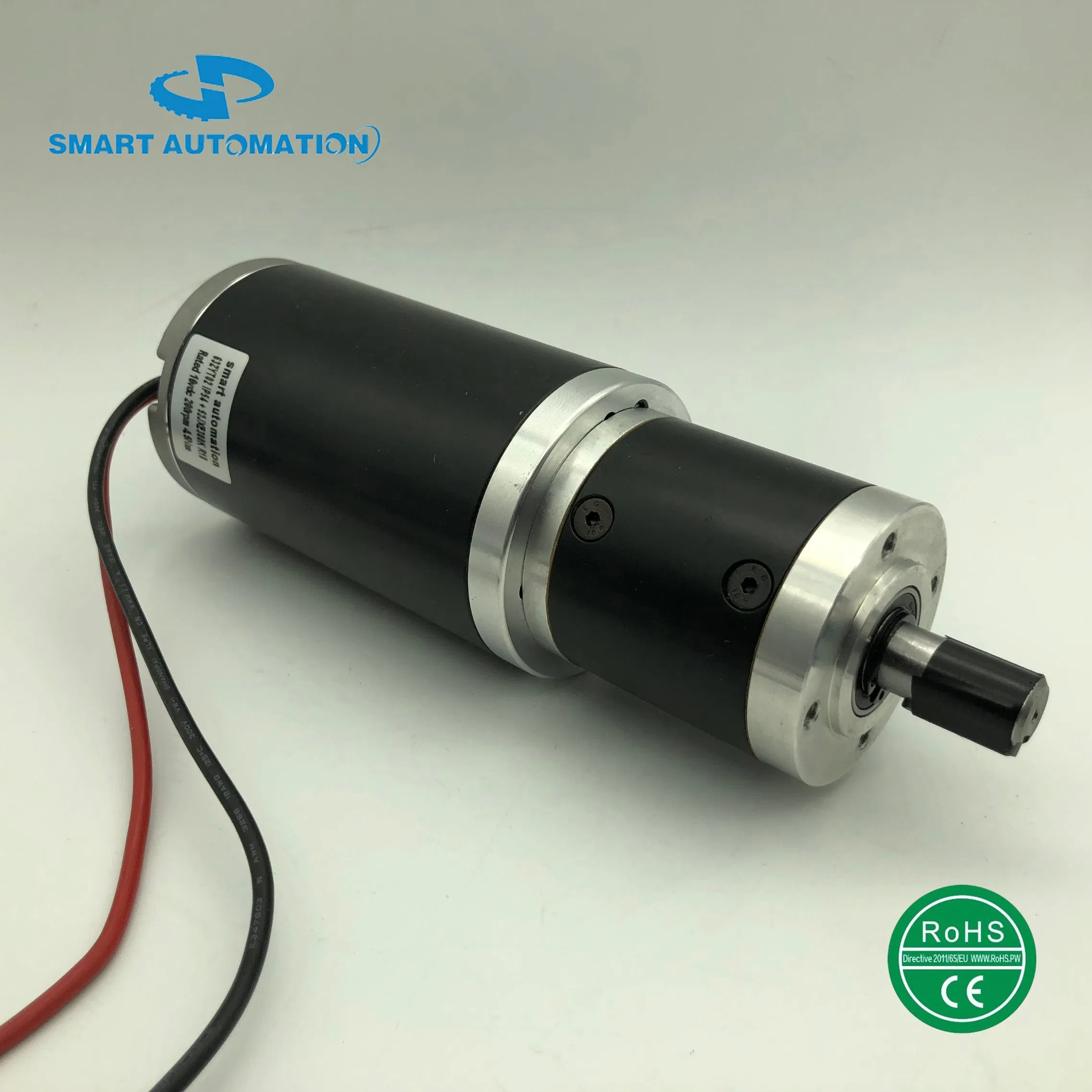

63mm Planetary Gear Motor

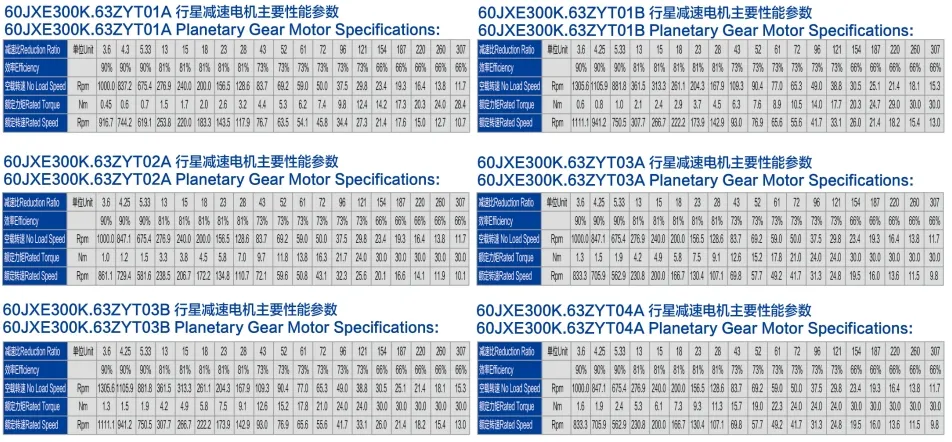

Planetary Gear Specifications
63zyt Series Worm Gear Motor

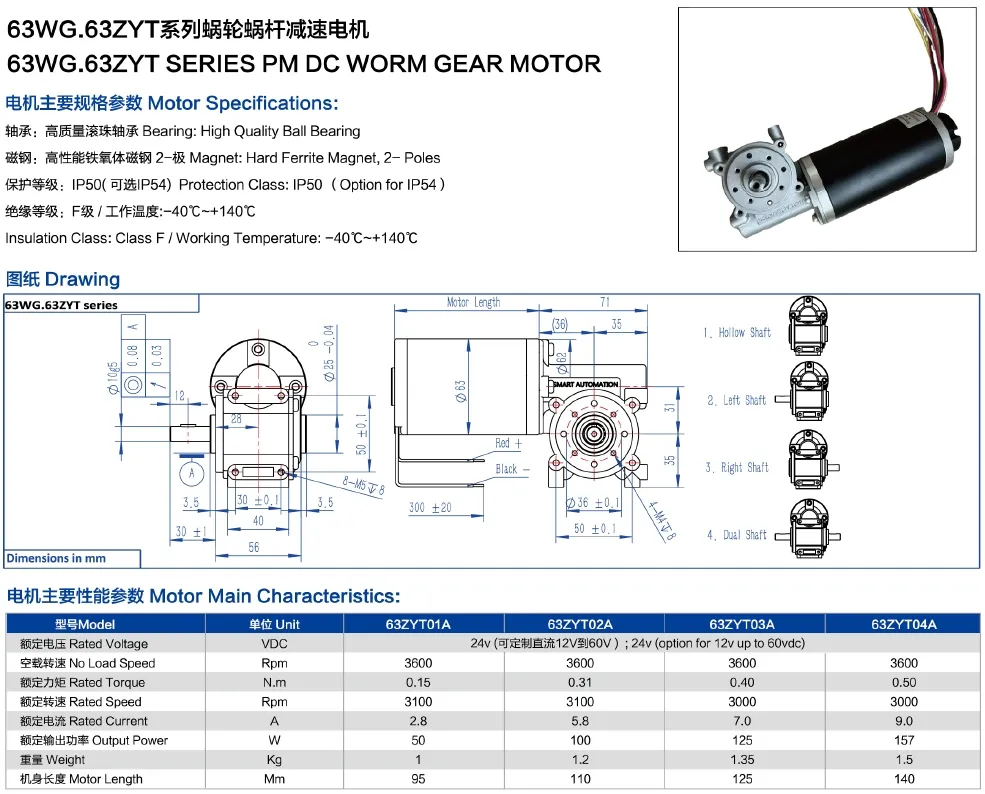

63zyt Worm Gear Motor

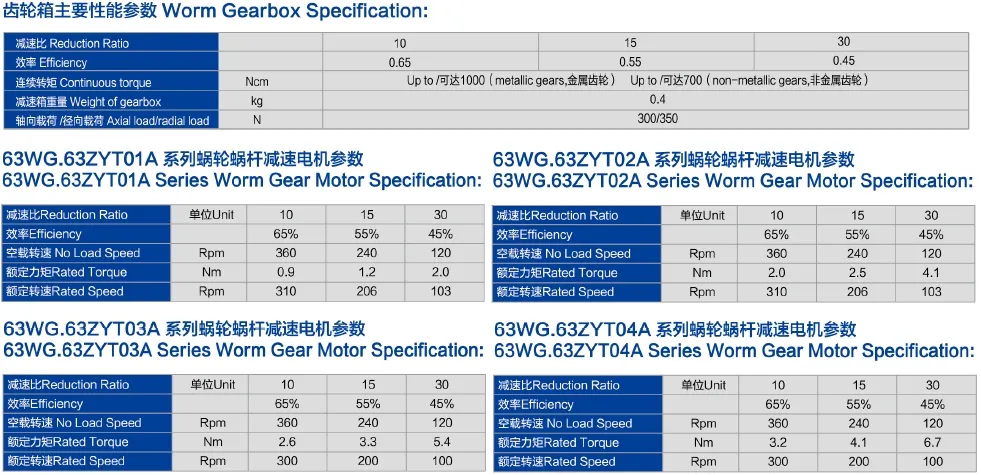

Worm Gear Motor Dimensions

Frequently Asked Questions

What are the customization options for the 63zyt motor?
We offer full customization for voltage (up to 380VDC), shaft dimensions, mounting configurations, and performance characteristics like speed and torque.
Can these motors be equipped with gearboxes?
Yes, the 63zyt series can be integrated with either planetary gearboxes or worm gearboxes, achieving rated torques up to 45Nm.
What protection ratings are available?
Depending on your application needs, we offer protection classes ranging from IP00 up to IP67 for water and dust resistance.
Do you provide additional accessories like encoders or brakes?
Absolutely. You can choose to have optical or magnetic encoders and electric brakes assembled directly onto the motor.
Is thermal protection included in the 63zyt series?
Thermal protection is an available option to ensure the motor operates safely and avoids overheating during intensive use.
What is the monthly production capacity for these motors?
Our current production capacity for the 63zyt series is 10,000 PCS per month.
