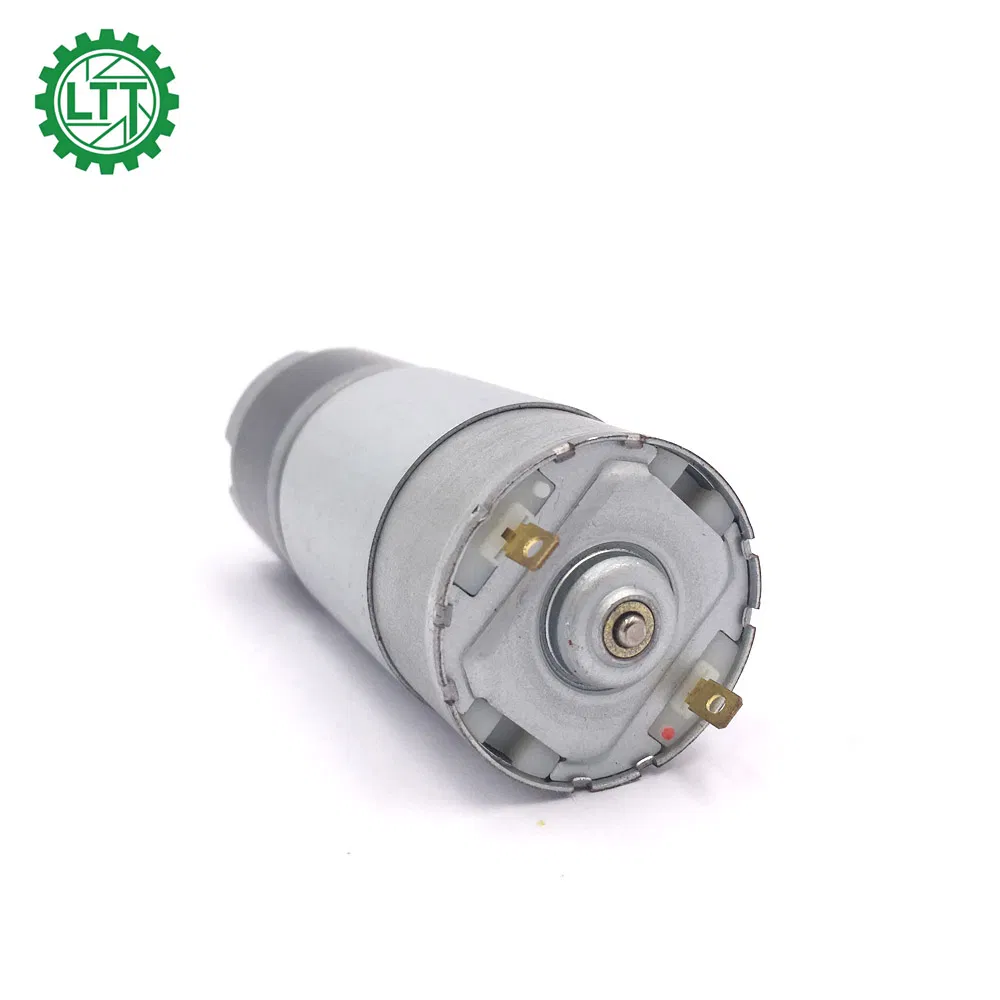

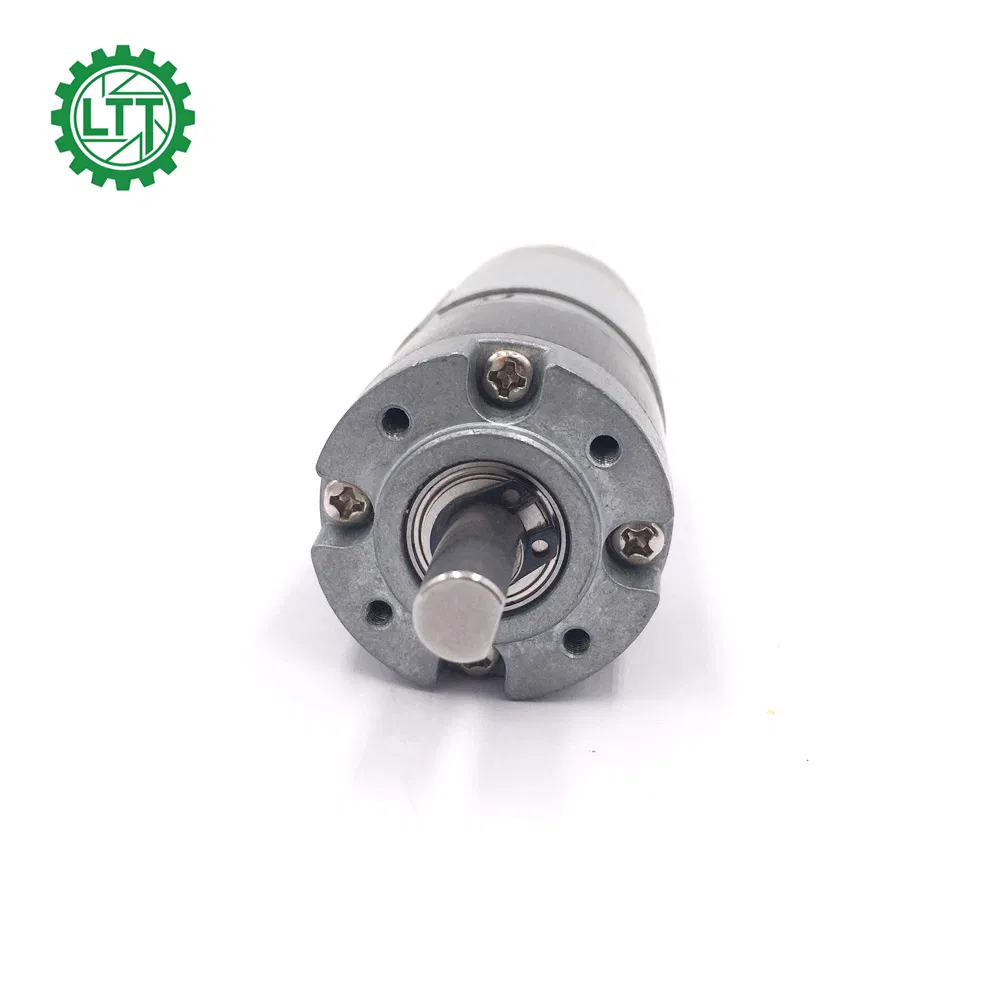

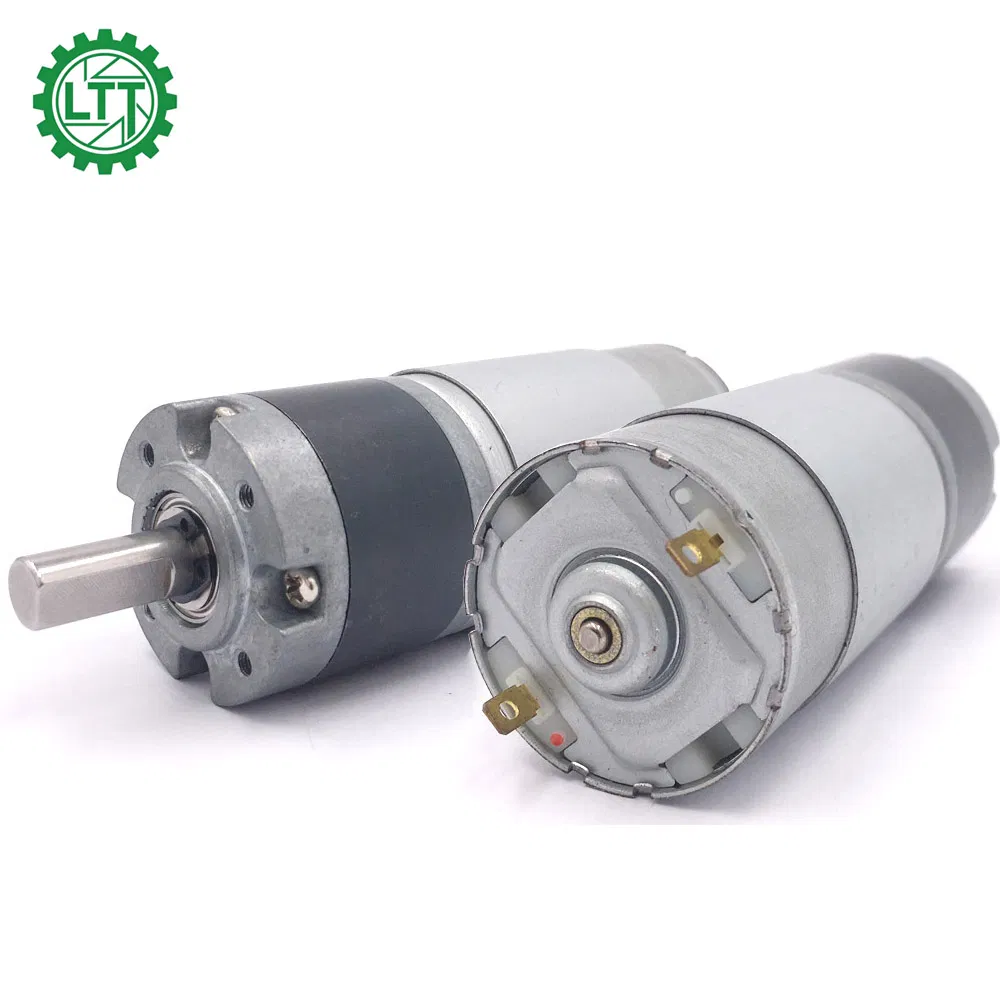

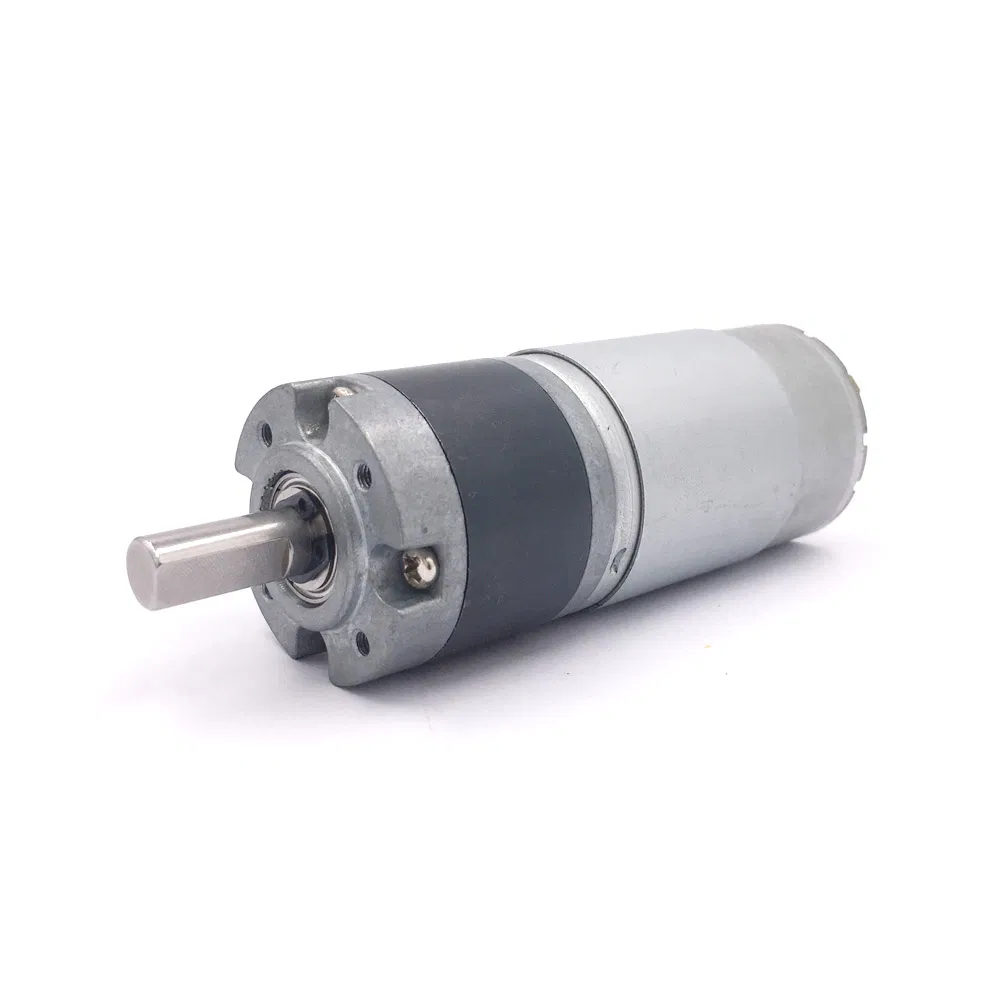

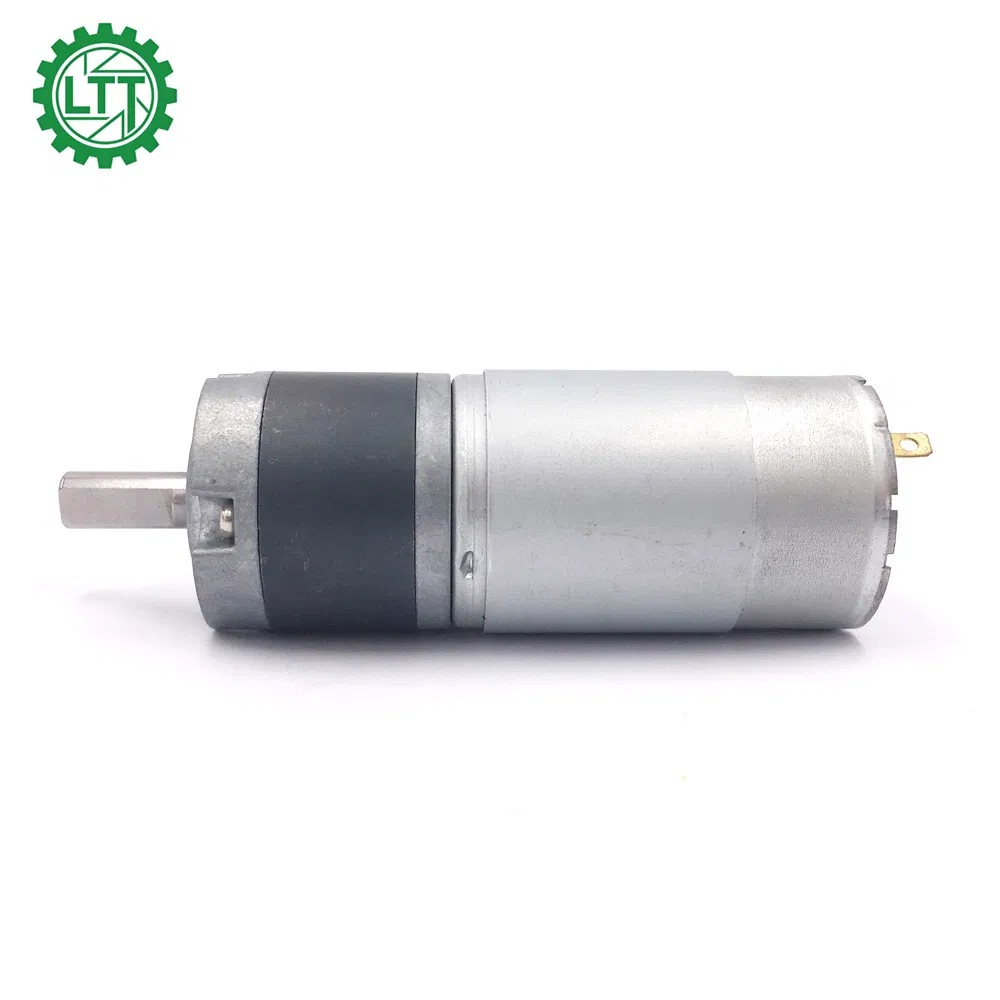

36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
1 / 5
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor
36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor

36mm Diameter 12V 24V High Torque DC Planetary Gear Motor with 540 545 550 555 DC Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️ Basic Info.
Model NO.
LPM36-555
Excitation Mode
Shunt
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
2
Structure
Brush
Type
PMDC Motor
Certification
ISO9001, CE, RoHS
Gearbox Size
φ36*L mm
Motor Size
φ35.6*57mm
Applications
Smart Robot, Automation, Power Tool
Rated Voltage
6V 12V 24VDC
Shaft Diameter
8mm
HS Code
8501101000
Capacity
500,000 pcs/Month
⚙️ Product Description
36mm Diameter Micro DC Planetary Gear Motor
Model:LPM36-555 Type:DC Planetary Gear Motor
Voltage:5V-36V Speed:1rpm-2200rpm
Continuous Current:≤16A Stall Torque:≤90kg.cm
Typical Application: Household Appliances, Hair Care, Office Equipment, Medical Equipment, Industrial Equipment, Intelligent Robot, etc.
Gearbox Material: Steel, brass, plastic, powder metallurgy, zinc alloy
Shaft Shape: Circular, D-shaft, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole

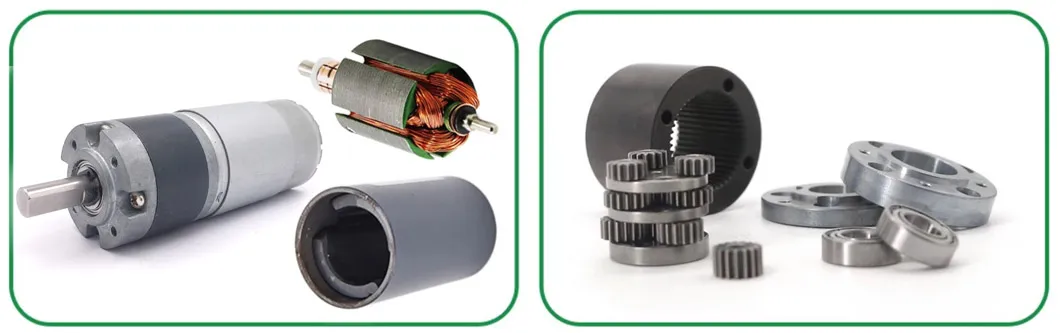

36mm Planetary Gear Motor Detail 1

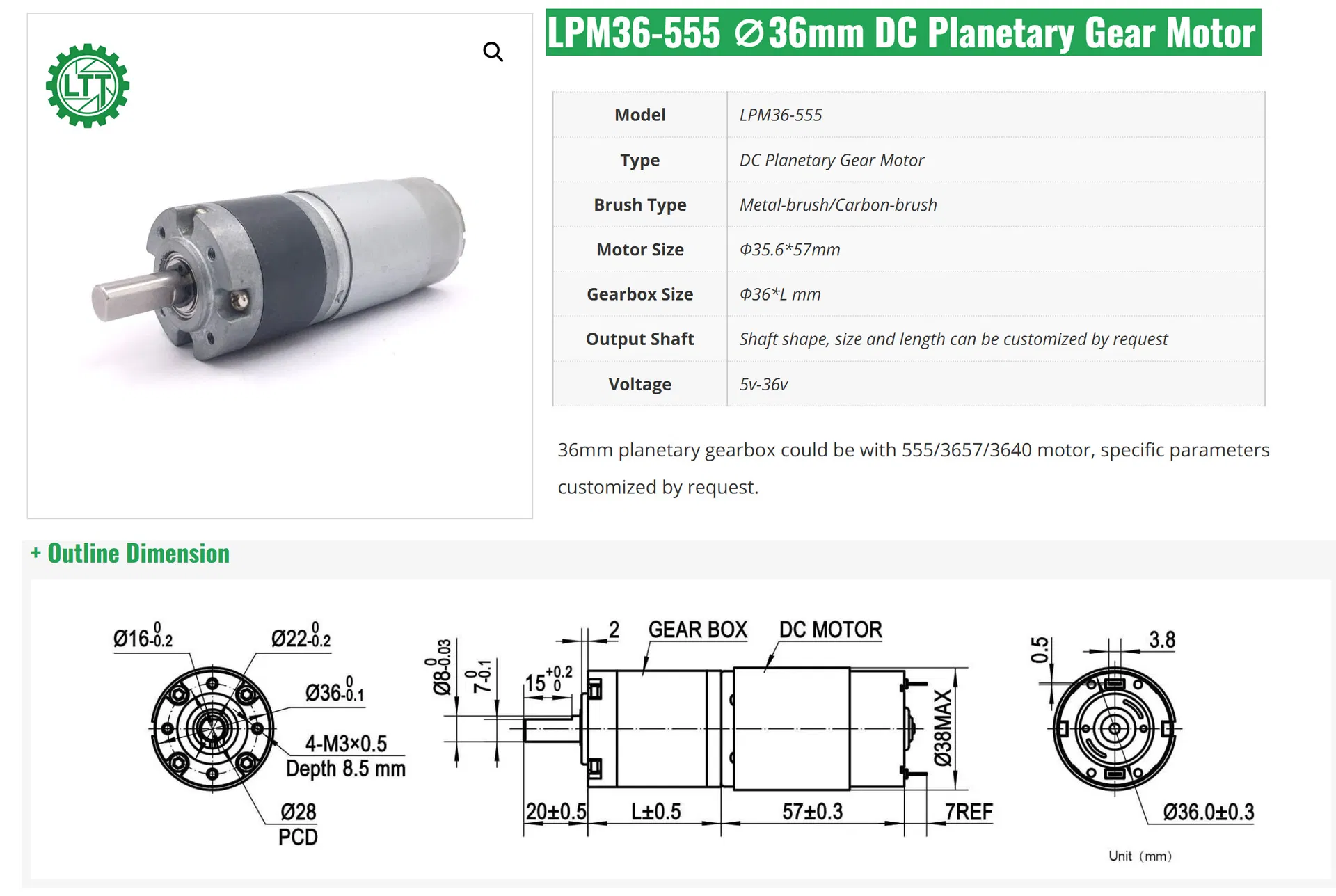

36mm Planetary Gear Motor Detail 2
📏 Specification

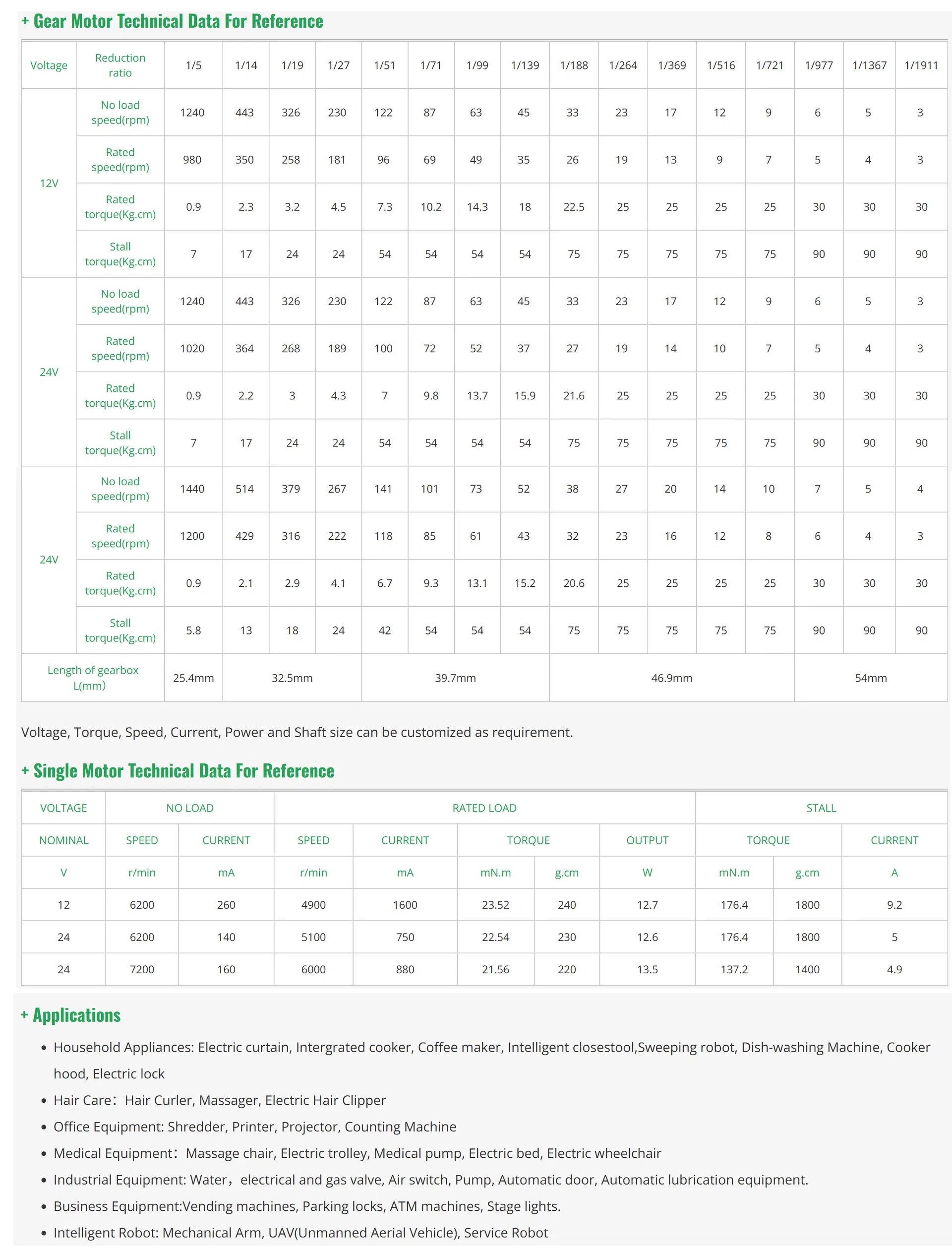

Motor Technical Drawing
Motor Performance Chart
📦 Main Products

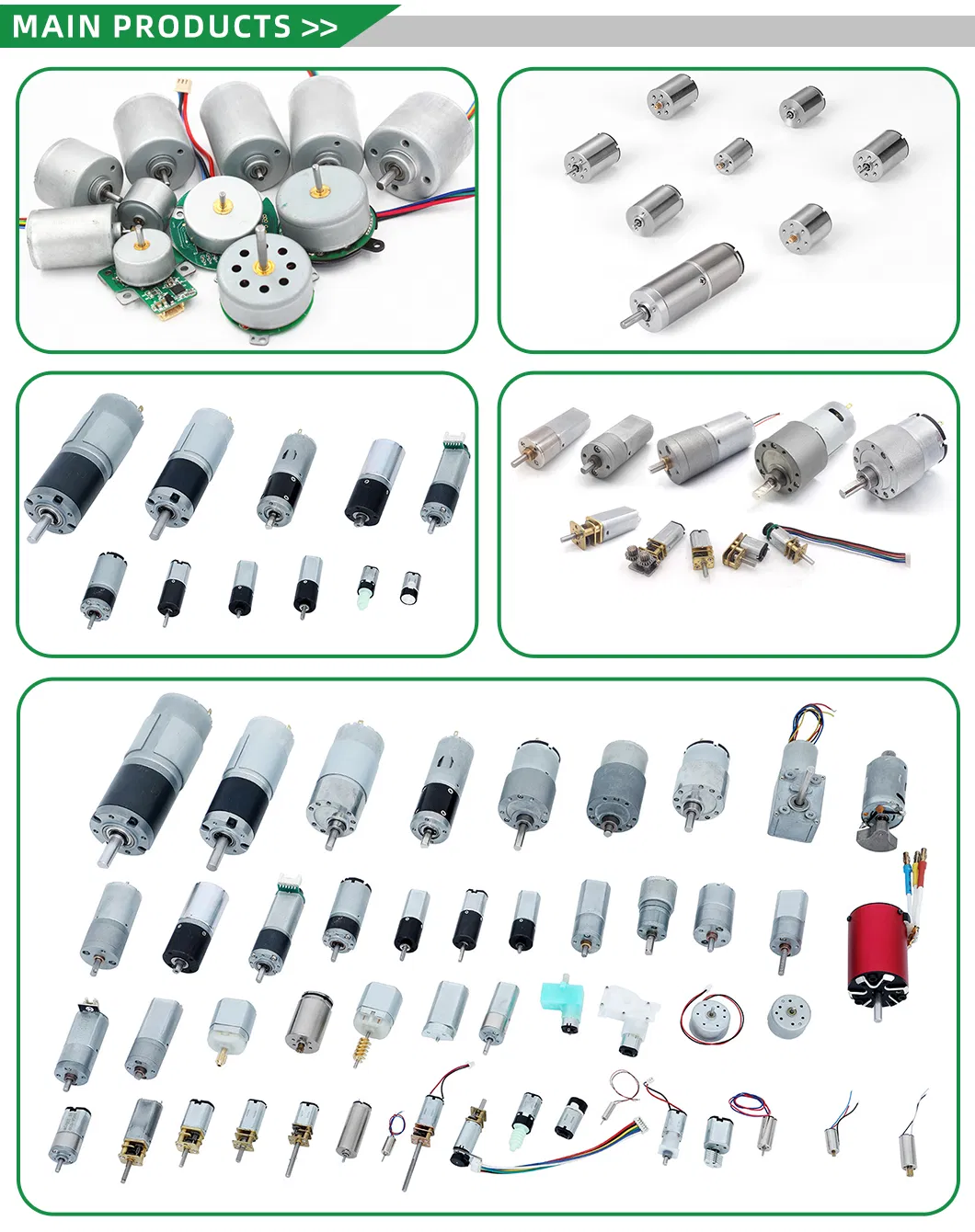

Product Range 1
Product Range 2
🏢 Company Profile

We have been deeply involved in the hardware module, small gear module industry, and the miniature precision planetary gearbox industry for many years. We maintain a stable technical team and profound technical accumulation, providing customers with overall drive system solutions for industrial tools, personal care, security, automotive parts, and medical devices.

Our philosophy focuses on manufacturing products with heart and serving customers sincerely, continuously improving R&D and production capabilities.

Factory Overview

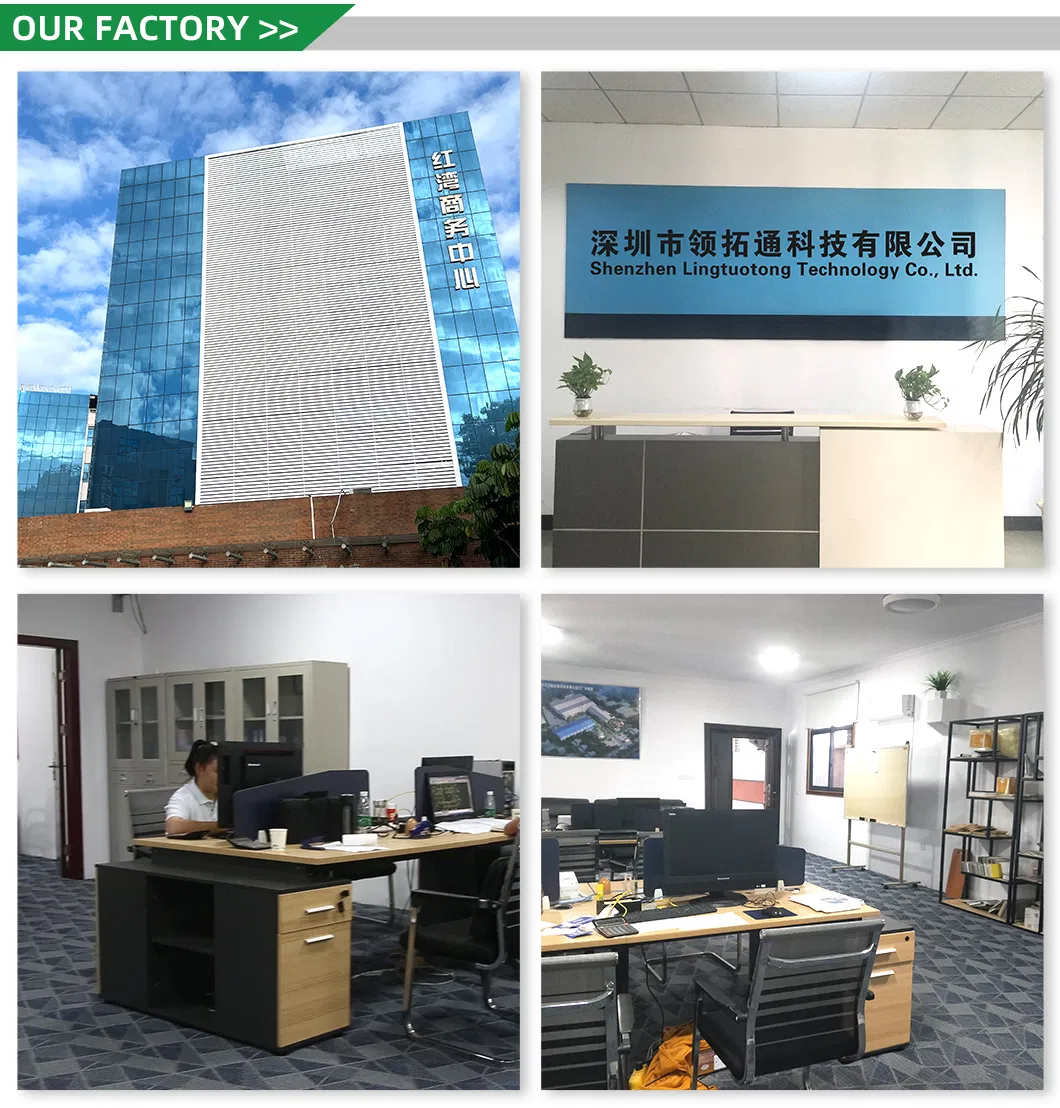

Production Line

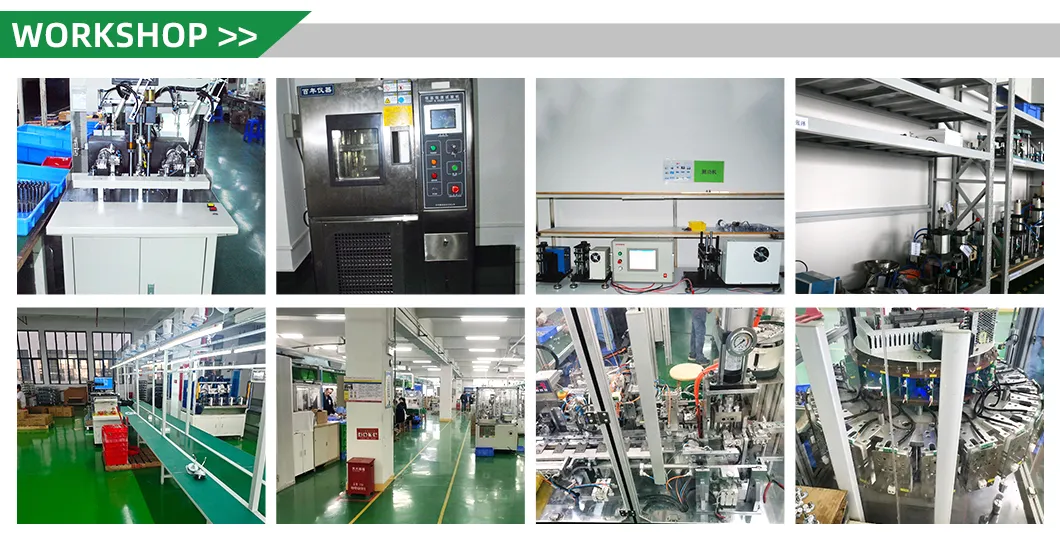

Equipment
⭐ Our Advantages
✓
Focus on Micro DC Motors: 10 years of manufacturing experience as a modern high-tech enterprise.
✓
Quick Customization: Customized solutions with 7-day sample production efficiency.
✓
Certified Quality: ISO9001:2008 system and 20+ international certifications (CE/RoHS/UL).
✓
Premium Materials: Precision processed motors using high-quality imported parts.
✓
Long Service Life: Designed for 3-20 years of operation under standard conditions.
✓
After-Sale Support: 7x24 hours online response with a dedicated technical team.
📜 Certifications
Certificates 1
Certificates 2
🚢 Packaging & Shipping
Packaging Standard
Shipping method: Packing by crate, carton or pallet; Shipping by air, sea or express (DHL, FedEx, UPS, TNT).
❓ FAQ
Q: Do you provide samples for testing?
A: Yes, we provide samples for all clients to test before mass production. The typical lead time is 7-15 days.
Q: Can the motor specifications be customized?
A: Absolutely. We can customize voltage, speed, torque, and shaft size/shape. We also offer additional wiring, connectors, or EMC components.
Q: How do I select the right DC Gear Motor?
A: Provide us with your required voltage, speed, torque, and size constraints. If you have drawings or photos, that helps our team recommend the perfect fit.
Q: What is the typical service life of your motors?
A: Under standard use conditions, our motors are designed to last between 3 to 20 years depending on the specific application.
Q: Do you keep products in stock?
A: All products are made to order to ensure the specifications meet your exact requirements; we do not maintain a finished goods inventory.
Q: What payment methods do you accept?
A: We accept T/T in advance, PayPal, and credit cards for sample and production orders.
